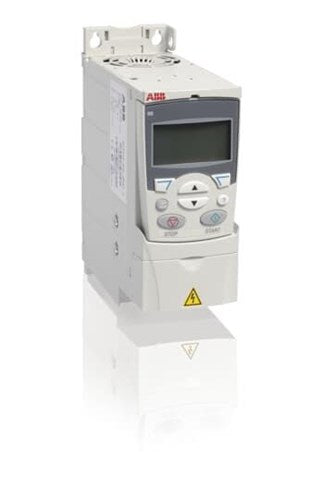

ABB ACS310 4KW 9.7A IP20 PUMP & FAN DRIVE W/O CP ACS310-03E-09A7-4

ABB ACS310 4KW 9.7A IP20 PUMP & FAN DRIVE W/O CP ACS310-03E-09A7-4

$1,339.80
$1,339.80
Sale Sold out
Tax included.

The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive’s performance in response to changes in pressure, flow or other external data.


Technical Specifications

Brand ABB
Application Domestic & Commercial
Communication Protocol MODBUS
Contains PC Connection
Dimensions (mm) 132W x 344H x 217D
EAN 6410038785789
Input Voltage AC (V) 380 - 480
Maximum Output Frequency (Hz) 500
Maximum Output Voltage AC (V) 480
No. of Analogue Inputs 2
No. of Analogue Outputs 1
No. of Digital Inputs 5
No. of Digital Outputs 1
Nominal Output Current (A) 9.7
Number of Other HW Interfaces 1
Number of RS-232 Interfaces 1
Number of RS-485 Interfaces 1
Output Power - Normal Duty (kW) 4
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
