ABB

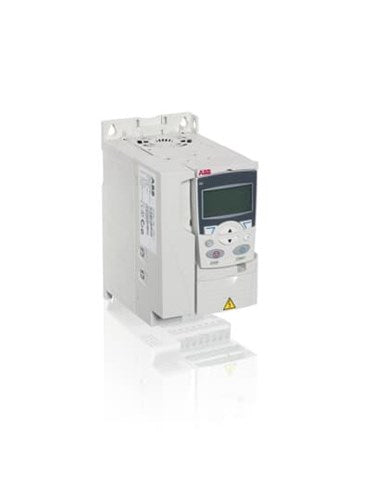

ABB ACS355 2.2KW 9.8A IP20 1PH MACHINERY DRIVE W/O CP ACS355-01E-09A8-2

ABB ACS355 2.2KW 9.8A IP20 1PH MACHINERY DRIVE W/O CP ACS355-01E-09A8-2

$1,012.00
$1,012.00
Sale Sold out
Tax included.

Product Code: 3AUA0000058170

The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
Product Catalog

Technical Specifications

Brand ABB
Application Domestic & Commercial
Communication Protocol TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety LON PROFINET IO EtherNet/IP Other Bus Systems
Contains PC Connection
Dimensions (mm) 132W x 344H x 217D
EAN 6438177223450
Input Voltage AC (V) 200 - 240
Maximum Output Frequency (Hz) 599
Maximum Output Voltage AC (V) 240
No. of Analogue Inputs 2
No. of Analogue Outputs 1
No. of Digital Inputs 5
No. of Digital Outputs 1
Nominal Output Current (A) 9.8
Number of Other HW Interfaces 1
Number of RS-232 Interfaces 1
Number of RS-485 Interfaces 1
Output Power - Normal Duty (kW) 2.2
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
