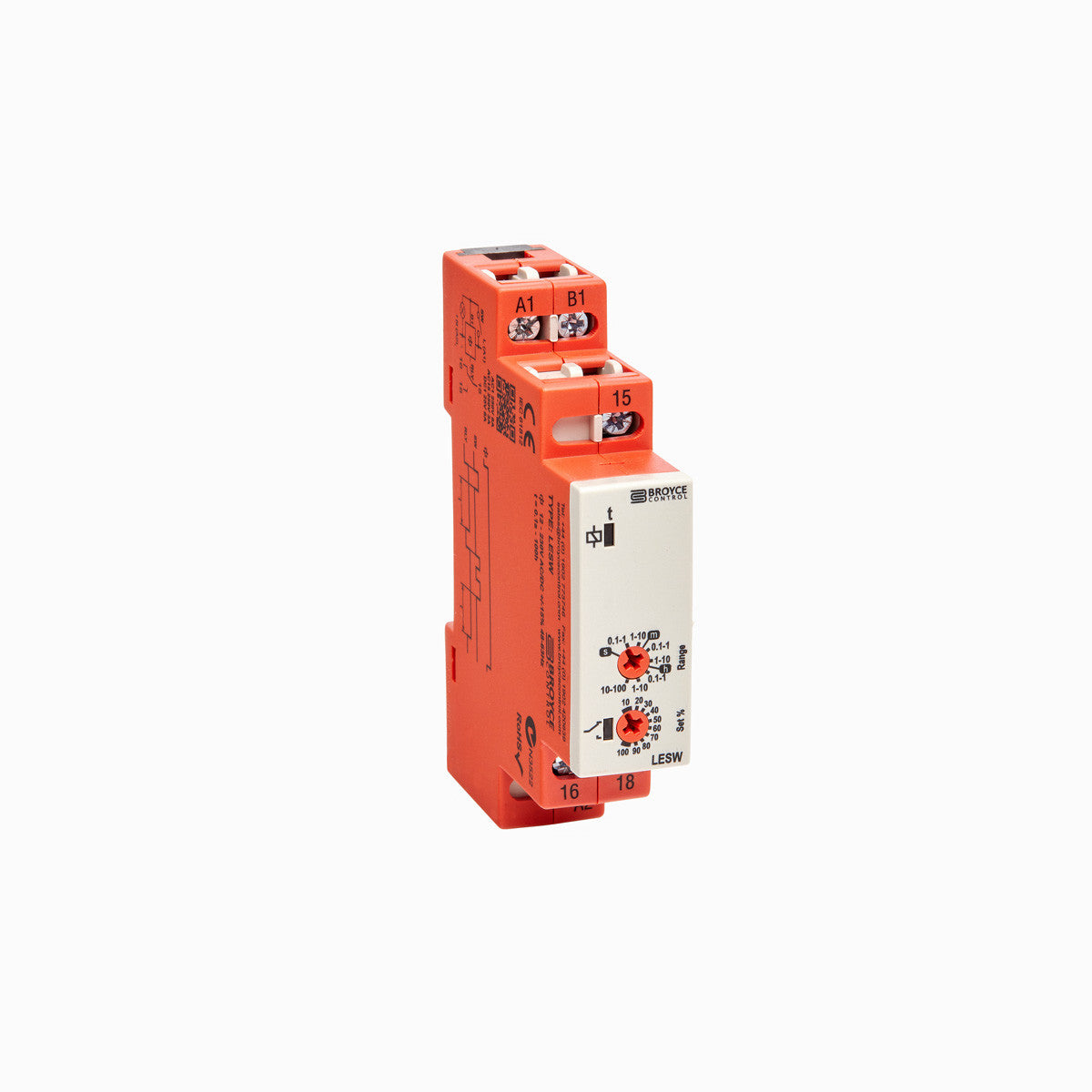

LESW
Delay Off Switch Initiated Timer 0.1s-100H 12-230V AC/DC
- Delay Off (Switch Initiated)
- Re-triggerable function
- Additional external loads can also be controlled by same trigger contact
- Multi-voltage (12 – 230VAC/DC)
- Multi-time range (0.1s – 100h)
- SPDT Relay output
- 17.5mm wide, DIN Rail mount
- UL Listed
- Supply voltage: 12 – 230VAC/DC +/-15%
- Time delay: 0.1s – 100h
- Output: SPDT 8A @ 250V (AC1)
- Dimensions(mm): W:17.5 x H:89 x D:66.5
- Product standard(s): IEC 61812
When power is applied, the output relay remains in the de-energised state. When the external contact closes (i.e. switch), the relay energises and remains in this state. As soon as the contact opens, the set time delay period begins and the relay continues to remain energised for this period. After the delay has elapsed, the relay de-energises.
