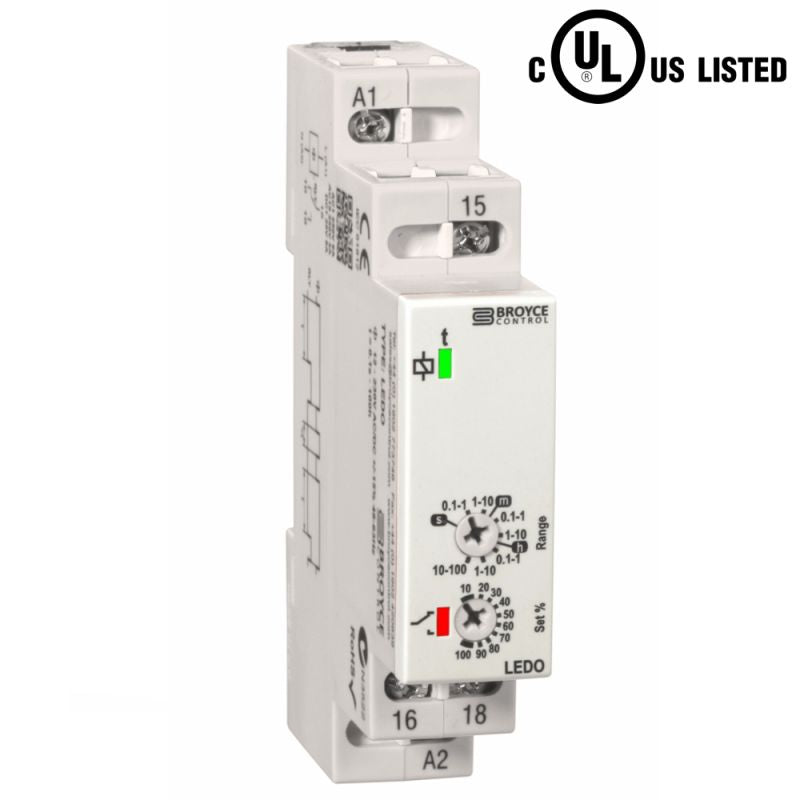

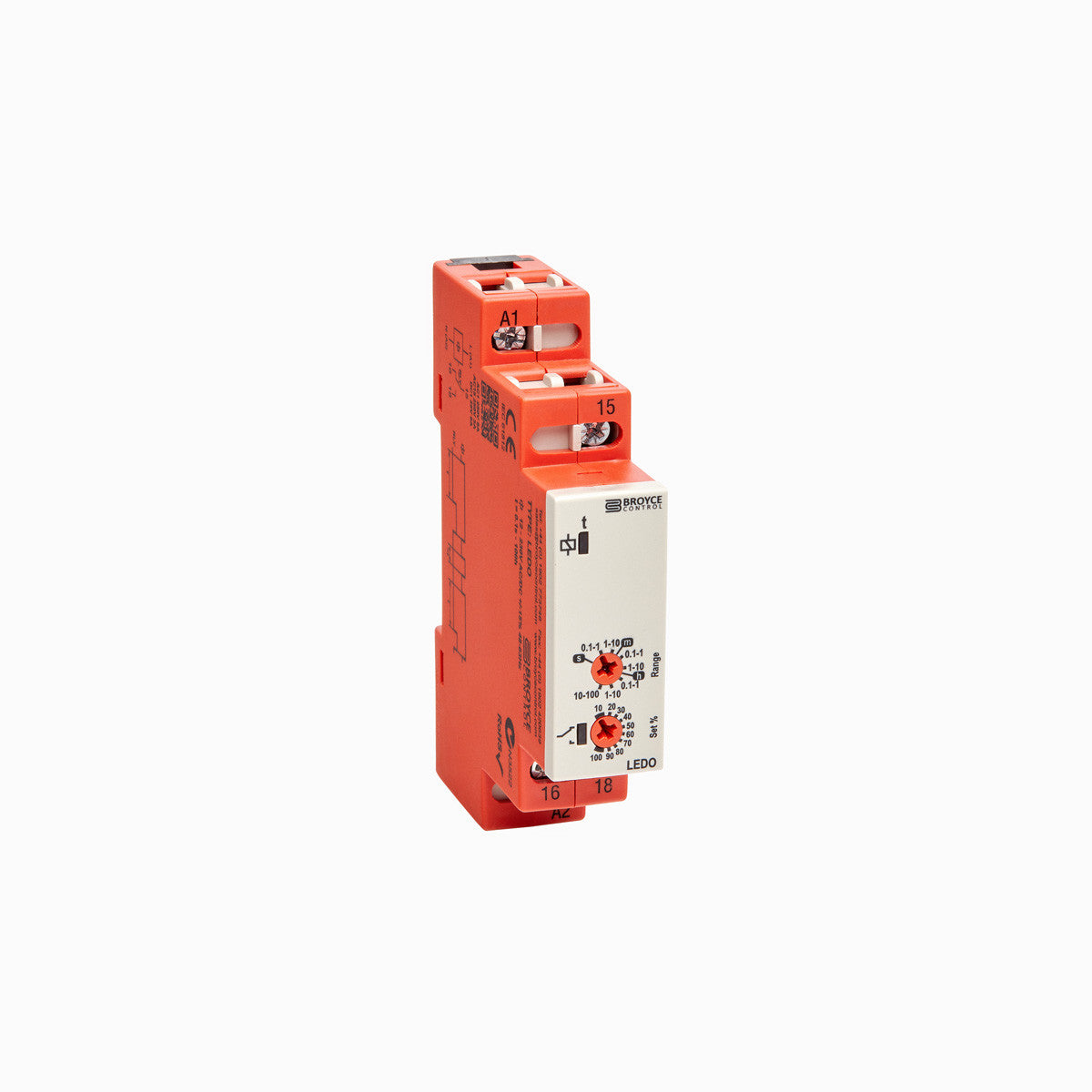

Broyce Control LEDO Delay On Operate Timer

LEDO Delay On Operate Timer 12-230V AC/DC

• *NEW* 17.5mm DIN rail housing
• Supply Initiated Delay On Operate timing function
• 7 Selectable time ranges (0.1 seconds – 100 hours)
• Fine adjustment of selected time range
• Multi-voltage input (12 – 230V AC/DC)
• 1 x SPDT relay output 8A
• Green LED indication for supply / timing status
• Red LED indication for relay status
• Conforms to IEC 61812

When power is applied, the output relay remains de-energised for the set time delay period. After the delay has elapsed, the relay energises. Power must be removed and re-applied to restart the function over again.
