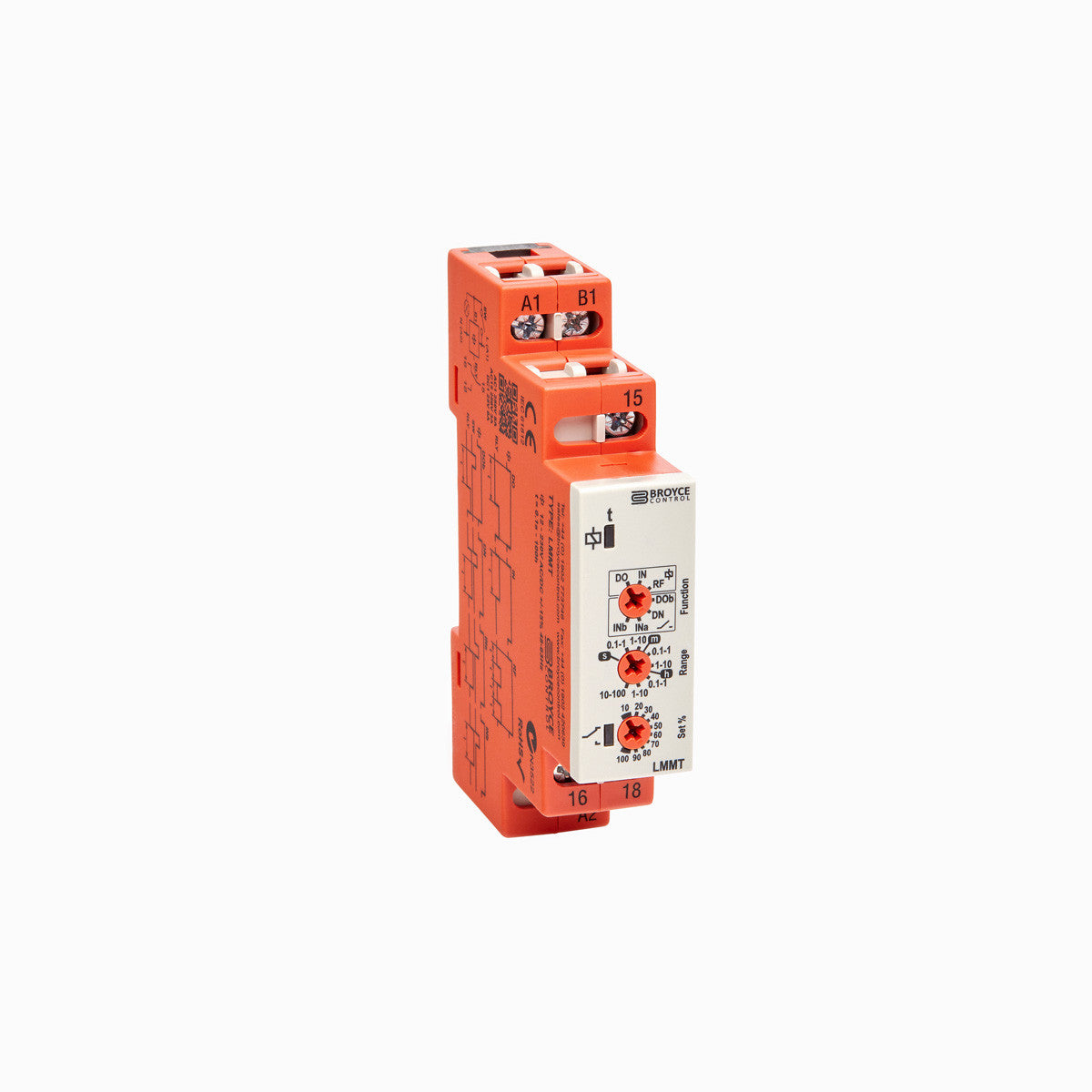

Broyce Control LMMT Multifunction, Multi-voltage Timer

LMMT Multifunction, Multi-voltage Timer 24-230V AC / 12-230V DC

• Multifunction (7 functions)
• Multi-voltage (24 – 230VAC/12 – 230VDC)
• Multi-time range (0.1s – 100h)
• Supply or Switch initiated timing functions
• SPDT Relay output
• 17.5mm wide, DIN Rail mount
• UL Listed
• Timing functions: Delay On, Interval, Symmetrical Recycling (Off/On), Delay Off*, Interval (Leading/Trailing Edge)*, Delay On*
  * switch initiated
• Supply voltage:  24 – 230VAC/12 – 230VDC
• Time delay: 0.1s – 100h
• Output: SPDT 8A @ 250V (AC1)
• Dimensions(mm): W:17.5 x H:89 x D:66.5
• Product standard(s): IEC 61812

Multifunction timer offering seven selectable timing functions. Three functions are supply initiated and commence as soon as power is applied. Four functions are switch initiated which require the power to be permanently applied in order for the function to carry out
