Control Techniques

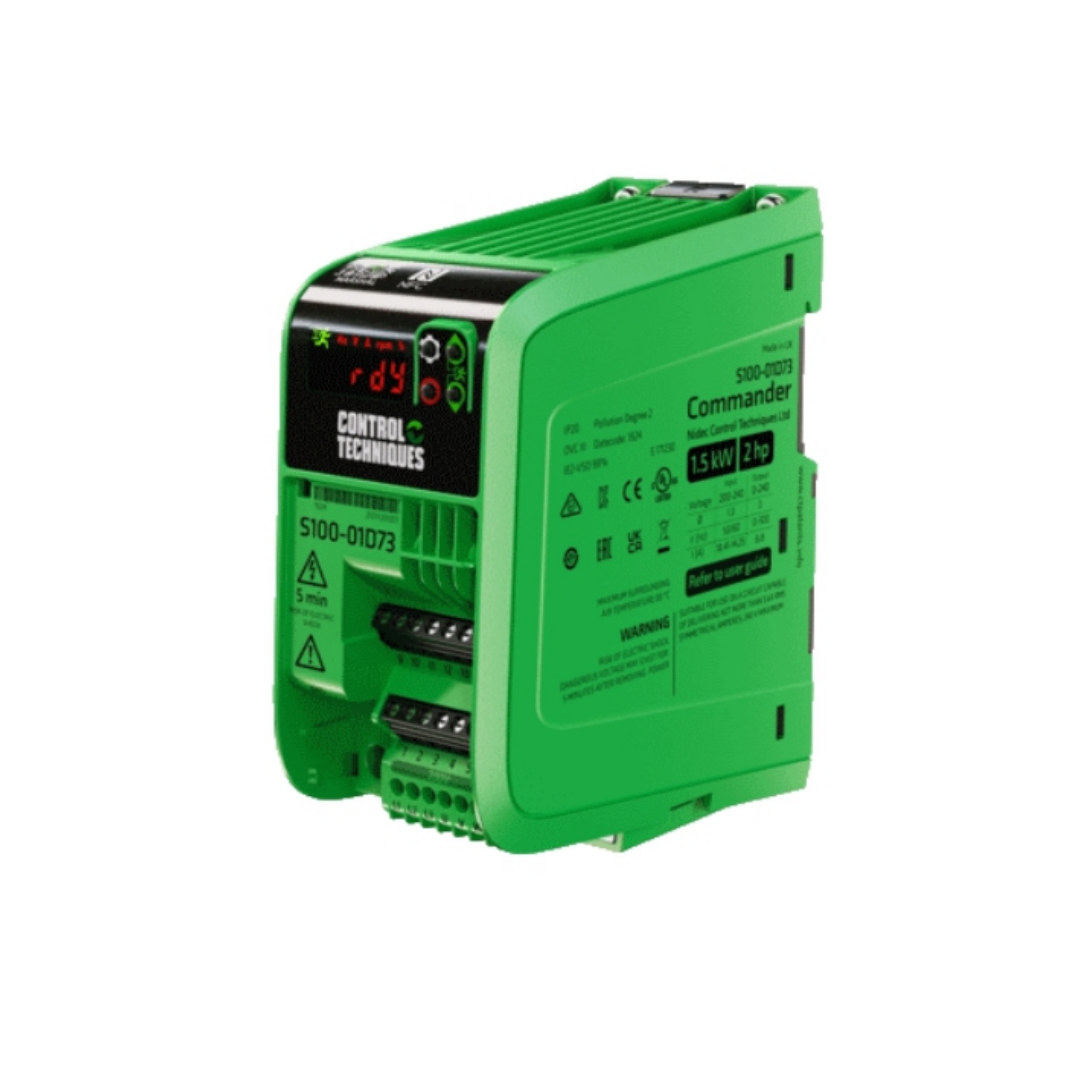

Control Techniques Commander S 1PH 0.37KW

Control Techniques Commander S 1PH 0.37KW

$327.80
$327.80
Sale Sold out
Tax included.

Part Number: S100-01S33-0A0000


Making simple applications, simple. Take charge of motor control and energy savings with the latest addition to the Control Techniques portfolio. With a feature set optimised for simple applications, Commander S provides a cost-effective solution for installations that require plug and play convenience straight from the box.
  • Power & Control
    Voltage 1PH  230 V
    Power Range
    		 0.37KW / 0.5HP
    Duty Rating
    		 Heavy Duty
    Input Frequency 50/60 Hz
    Output Frequency 0 to 300 Hz
    Switching Frequency
    		 4 kHz and 12 kHz
    Motor Control
    		 Linear V to F , Square V to F, Resistance, Compensation
    Stopping Modes

    Coast, Ramp, Ramp & DC Injection Braking, DC Braking with 0 Hz detect, Timed DC Braking, Distance Stop
    Communications
    Communications RJ45 for Modbus RTU
    NFC for app interface
    Inputs & Outputs
    Analogue
    		 2 x Analogue inputs
    1 x Analogue output
    Digital
    		 4 x Digital inputs
    1 x Digital input / output
    Relay
    		 1 x Relay (single pole, double throw relay)
    Standards
    Approvals
    		 CE, UKCA, cUL, C-Tick, EAC, KC
    Product Safety
    Standards    		 IEC/EN/KN/UL 61800-5-1, CSA C22.2 No.274, GB12668.501-2013
    Emission
    Compliance
    		 C3 internal EMC filters
    C1 & C2 with external EMC filters
    C1 internal EMC filters, for selected 1Φ 200 V variants
    Mounting & Environment
    IP Rating IP20
    Mounting
    		 Click on/click off DIN rail moun
    Screw mount
    0 mm side by side
    Ambient
    Temperature    		 Operation without de-rate: -10°C to 40°C
    (14°F to 104°F)
    Operation with de-rate: -10°C to 60°C
    (14°F to 140°F)
    Storage: -40°C to 60°C (-40°F to 140°F)
