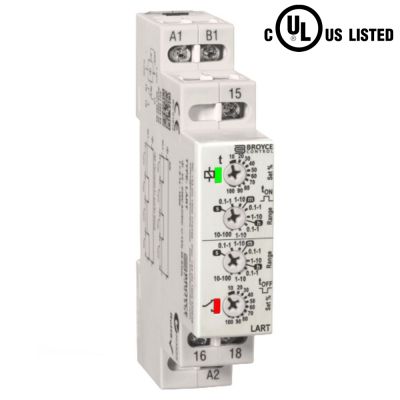

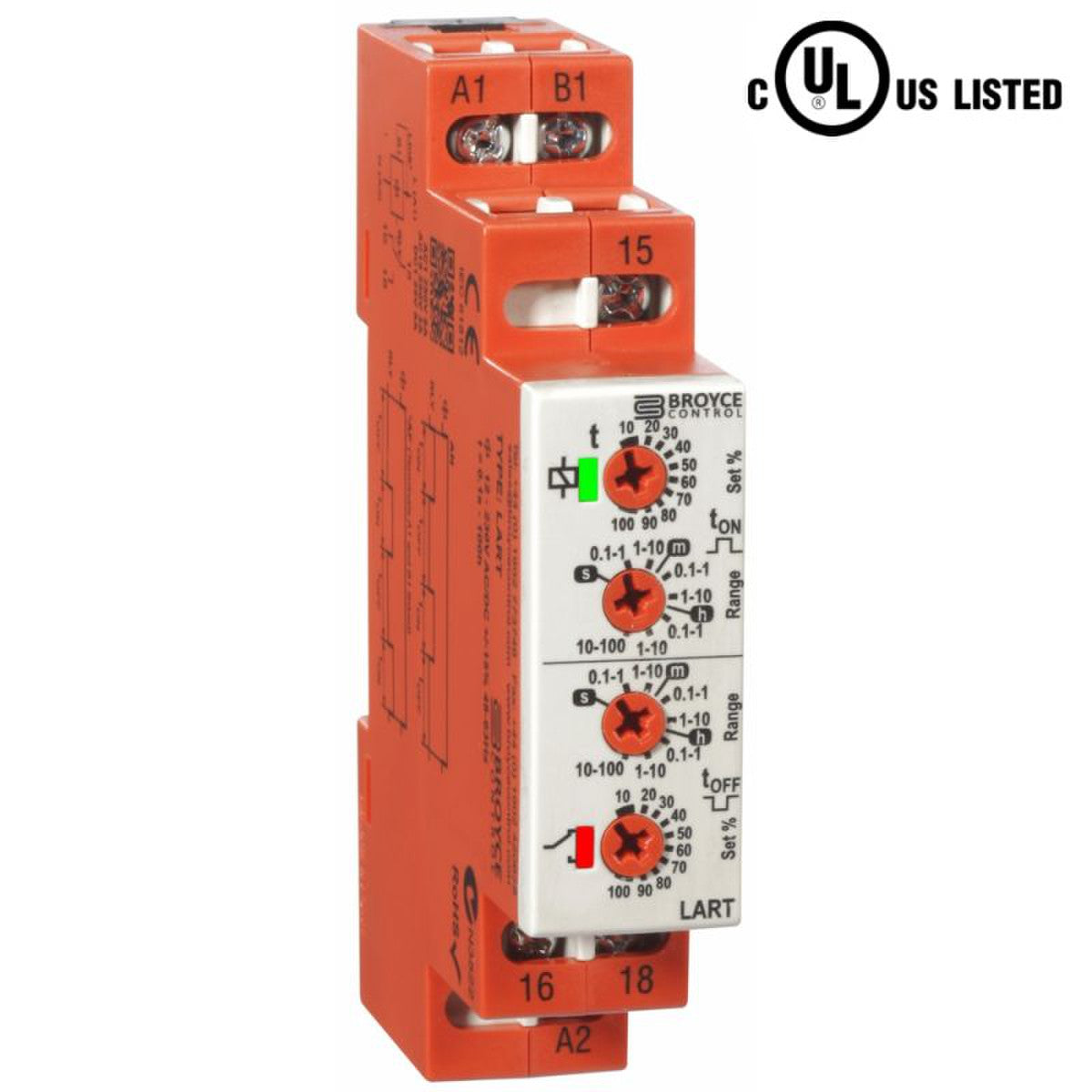

Type: LART Asymmetrical Recycling, Multi-voltage Time
- Asymmetrical Recycling
- Dual Function (On/Off or Off/On)
- Multi-voltage (24 – 230VAC/12 – 230VDC)
- Multi-time range (0.1s – 100h)
- SPDT Relay output
- 17.5mm wide, DIN Rail mount
- UL Listed
The timer is offered with two operating modes:
On/Off Recycling
When power is applied, the output relay energises for the set “on” time delay period. After this delay has elapsed, the relay de-energises and remains in this state for the set “off” time delay period. After this period has elapsed, the relay re-energises and the sequence starts over again and continues to operate like this for as long as the power is applied.
Off/On Recycling
Is the reverse of the above whereby the relay remains de-energised for the set “off” time delay period as soon as power is applied.
