Trumeter - Digital Panel Meter - AC/DC Current
Trumeter - Digital Panel Meter - AC/DC Current
Couldn't load pickup availability

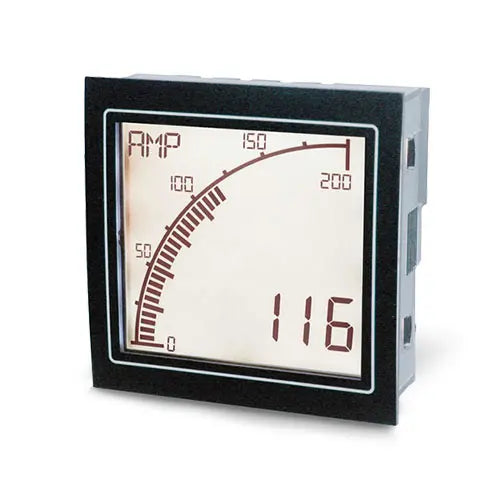

Current Meter - APM-AMP-APO
A digital amp meter for measuring direct AC & DC current up to 5A
The APM Amp Meter is a digital amp meter for measuring AC & DC direct current up to 5A to 1% accuracy. For applications including control panels and power supplies.
Benefits include:
Auto-detects AC or DC input
Measures 5A direct
1% accuracy (with up to 50mA fluctuation)
20 point non-linearization scaling (for non-linear sensors)
10 alarm setpoints & configurable digital output delay
*NEW* Remote monitoring with Trumeter Cloud and IOT Gateway
Specifications
| APM Input |
0 – 10,000A via CT, 0 – 5A Direct |
|---|---|
| PSU |

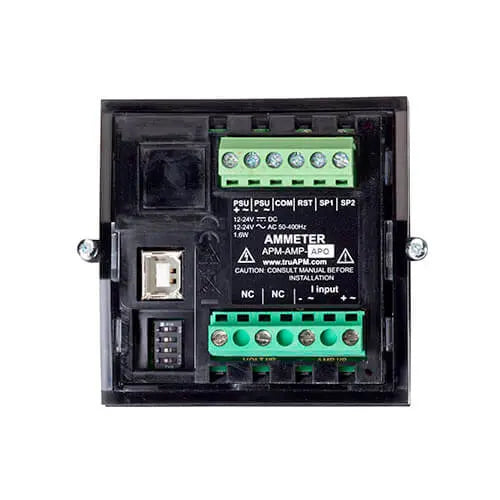

12 – 24V AC/DC |
| Outputs |
Output 1: Digital (open collector) or Analog (4-20mA), Output 2: Digital (open collector) or Analog (4-20mA) |
| Communication |
Modbus RTU Optional |
| Dimensions |

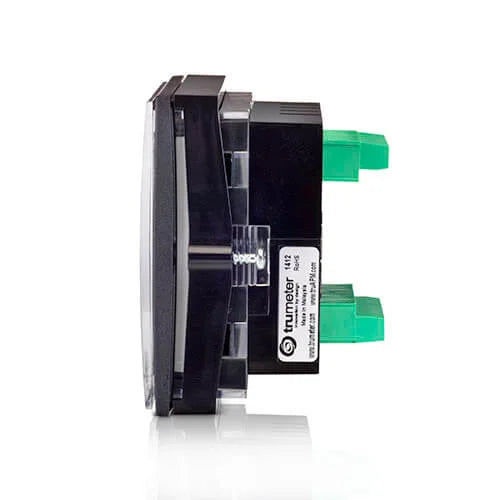

72mm x 72mm x 53mm |
| Screen Size |
57mm x 53mm |
| Accuracy |
1.0% |
| Certifications |
CE, cUL, IP65, NEMA Type 4 & 12 (UL50), ROHS, UKCA, UL |
Part Numbers

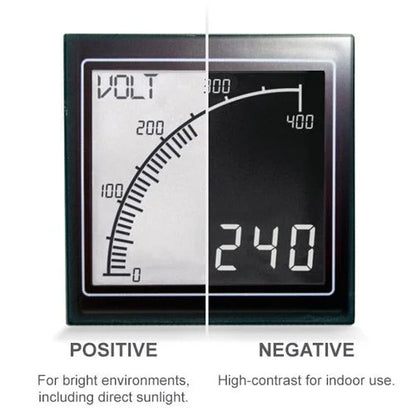

APM-AMP-ANO – negative LCD, with outputs
024569-01 APM Evaluation Kit
By Request: Modbus Connectivity
APM-AMP-APS – positive LCD, with Modbus
APM-AMP-ANS – negative LCD with Modbus
