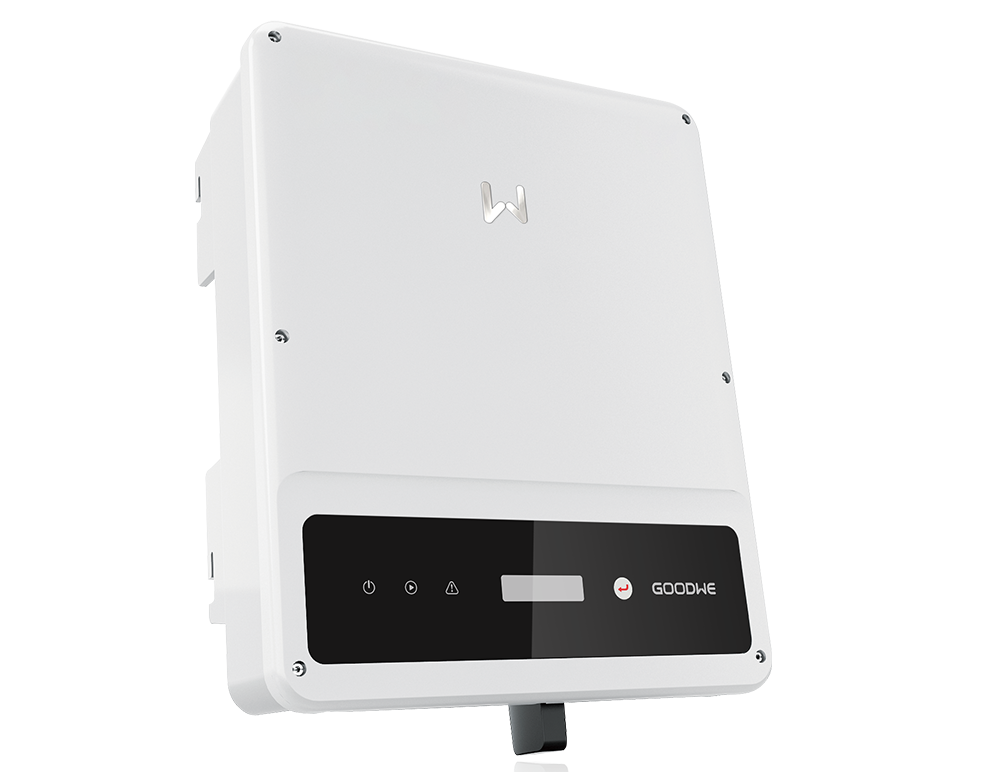

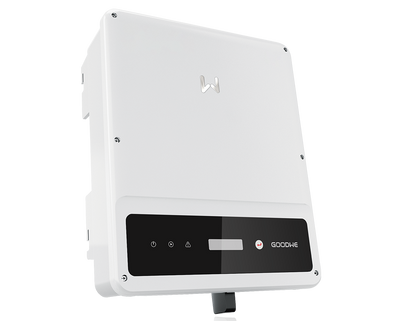

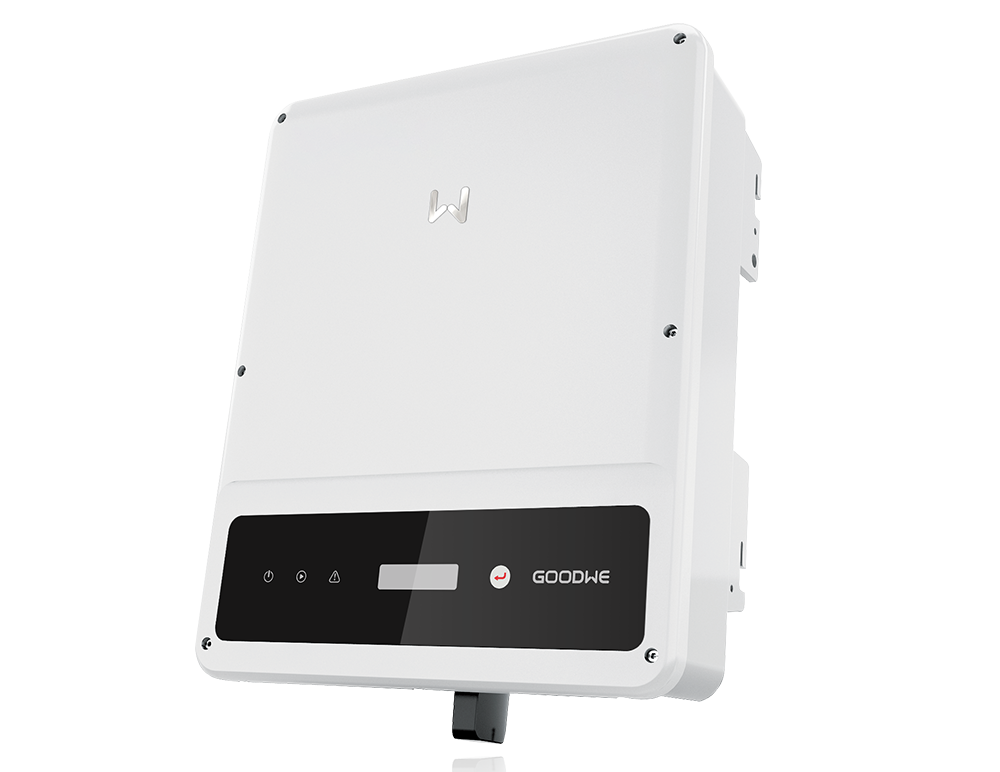

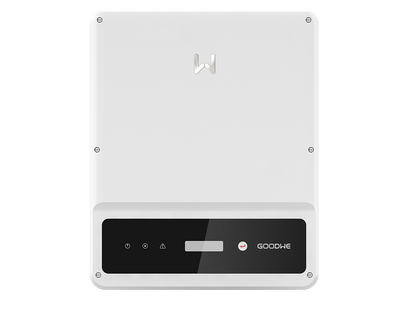

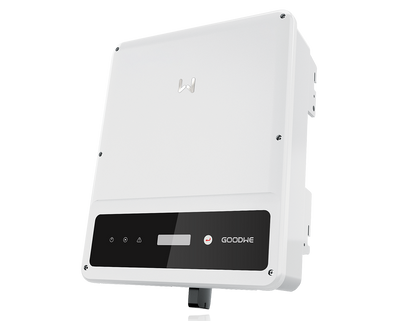

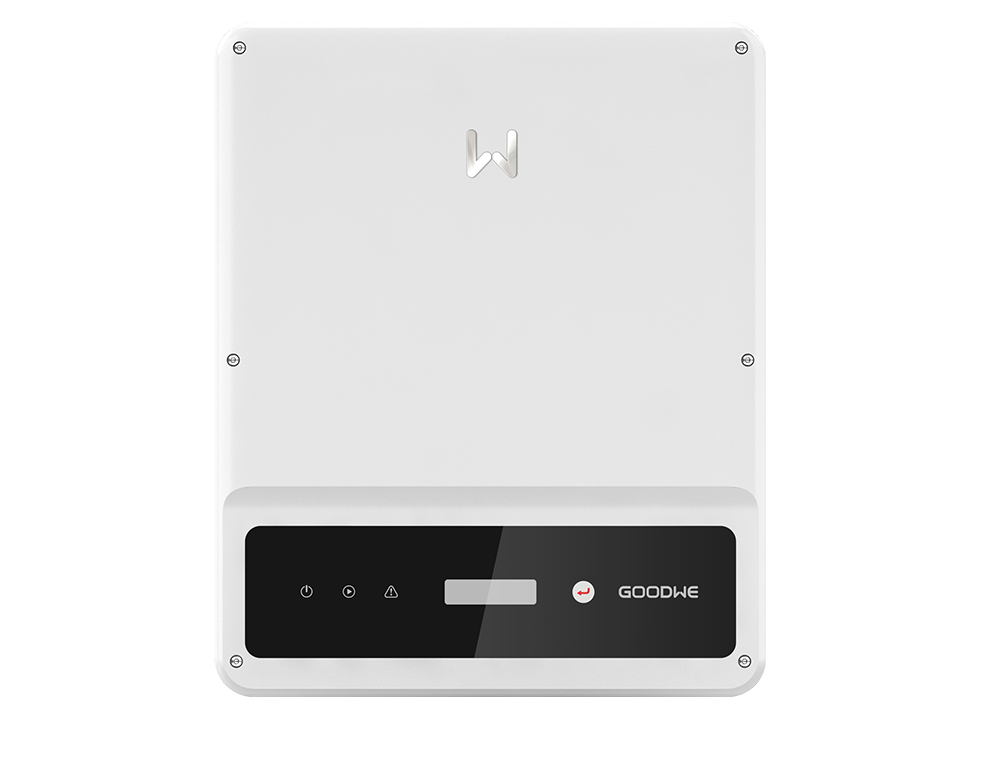

GOODWE GW4200-DNS-30 | 4.2KW DUAL-MPPT GRID-TIED PV INVERTER

GoodWe 4.2kW Single Phase DNS SERIES G3 Solar Inverter Dual MPPT IP65 With Inbuilt DC Switch And Wifi - DNS G3

Datasheet

The GoodWe DNS G3 series inverter is designed for singlephase residential applications. Integrated with high-current input and DC input oversizing capabilities, the DNS G3 provides optimised power generation and substantial return on investment. With its lighter and fanless compact design, the DNS G3 inverter provides a reliable power supply that runs at a super quiet operation of less than 25dB. The inverter also takes safety measures including optional Arc Fault Current Interrupt r (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments, for guaranteed safety.

Smart Control & Monitoring

• 24/7 load consumption monitoring*
• Multiple communication protocols supported

Superb Safety & Reliability

• Optional AFCI preventing electrical fires*
• Optional AC & DC Type II SPD & SPD failure alarm

Optimal Generation

• Max. 16A input current per string
• 150% DC input oversizing & 110% AC output overloading

Friendly & Thoughtful Design

• IP66 ingress protection
• Low noise level thanks to fanless cooling
