P/N: ATR171-23ABC-T
FOUR SETPOINT CONTROLLER 72X72 4+4 Digit 3 RL+1V/mA-SSR-RS485-24/220V

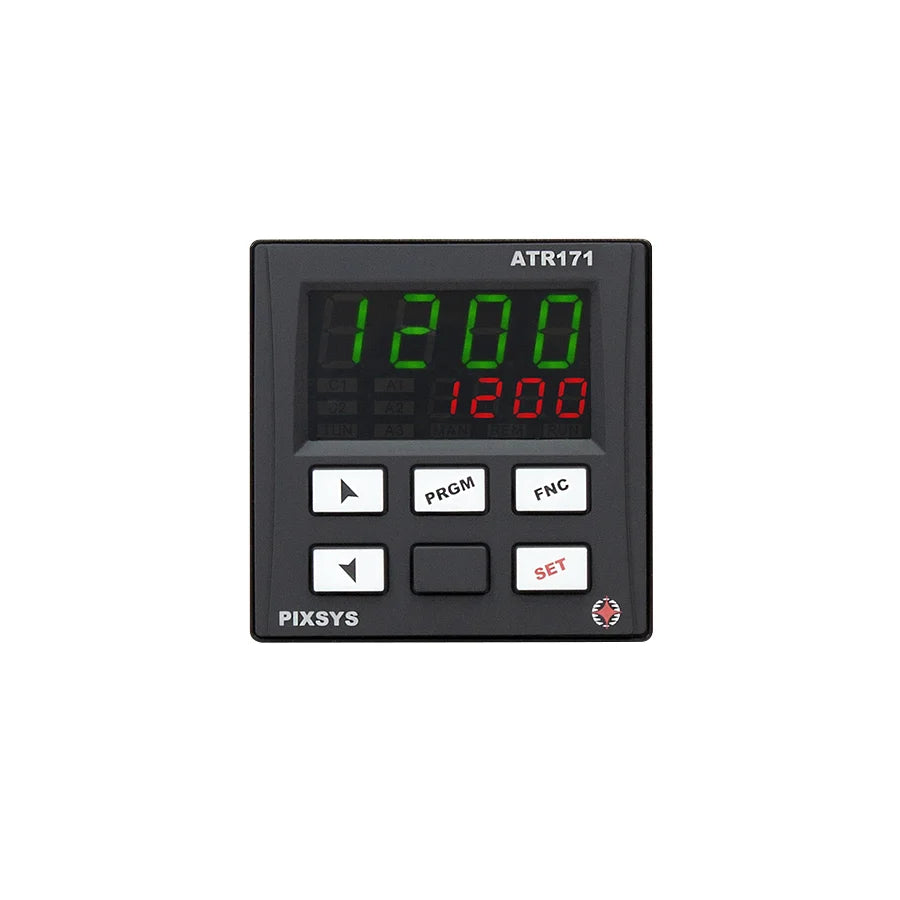

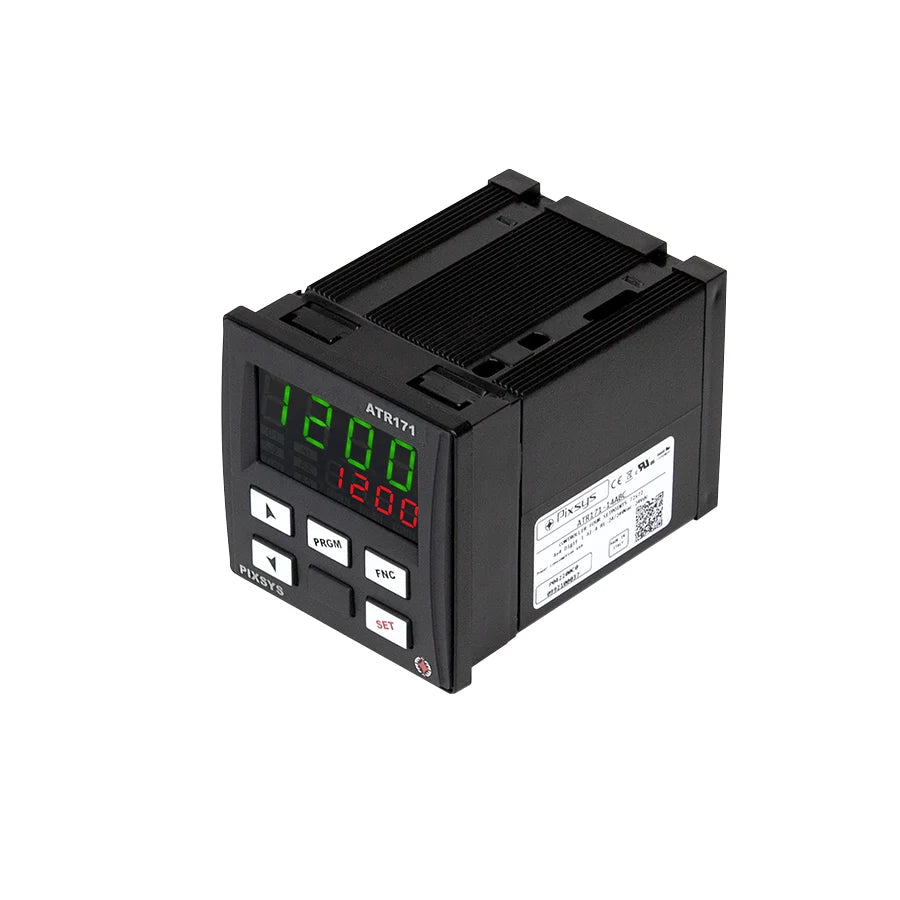

ATR171 is a PID controller with dual 4-digit displays that can be programmed for different applications in industrial environment.
One analog input is programmable for both temperature sensors and V/mA process signals. The optional second input is programmable only for temperature sensors for differential control applications.
Outputs are selectable as command, multiple alarm modes or analog retransmission.
Serial communication option is in RS485 with Modbus RTU/Slave protocol.
It is provided with extended range power supply from 24 to 230V AC/DC with galvanic isolation.
Digital input allows external activation of various functions, including Timer mode.
One analog input is programmable for both temperature sensors and V/mA process signals. The optional second input is programmable only for temperature sensors for differential control applications.
Outputs are selectable as command, multiple alarm modes or analog retransmission.
Serial communication option is in RS485 with Modbus RTU/Slave protocol.
It is provided with extended range power supply from 24 to 230V AC/DC with galvanic isolation.
Digital input allows external activation of various functions, including Timer mode.
| ATR171-23ABC-T | |
| Power supply | 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV |
| Power consumption | 6 Watt/VA |
| Display | Green display 4 digits 0,56 , red 4 digits 0,3" e 6 signaling leds |
| Analogue inputs | 1x Ris. 16bit, programmable for thermocouples K, J, S, R (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. oppure ±1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV (16000 points), Potentiometers F.S. 6/150Kohm (50000 points). 1x Ris. 16bit, programmable for thermocouples K, J, S, R (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K) |
| Sampling time | |
| Digital inputs | - |
| Digital / analogue input | 1 x Digital PNP 12VDC - 30mA o 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points± 0,2% F.S.) |
| Relais output | 3 x 8A - 250VAC resistive loads |
| Serial communication | RS485 (1200..115200 Baud) galvanically isolated |
