P/N: ATR144-ABC

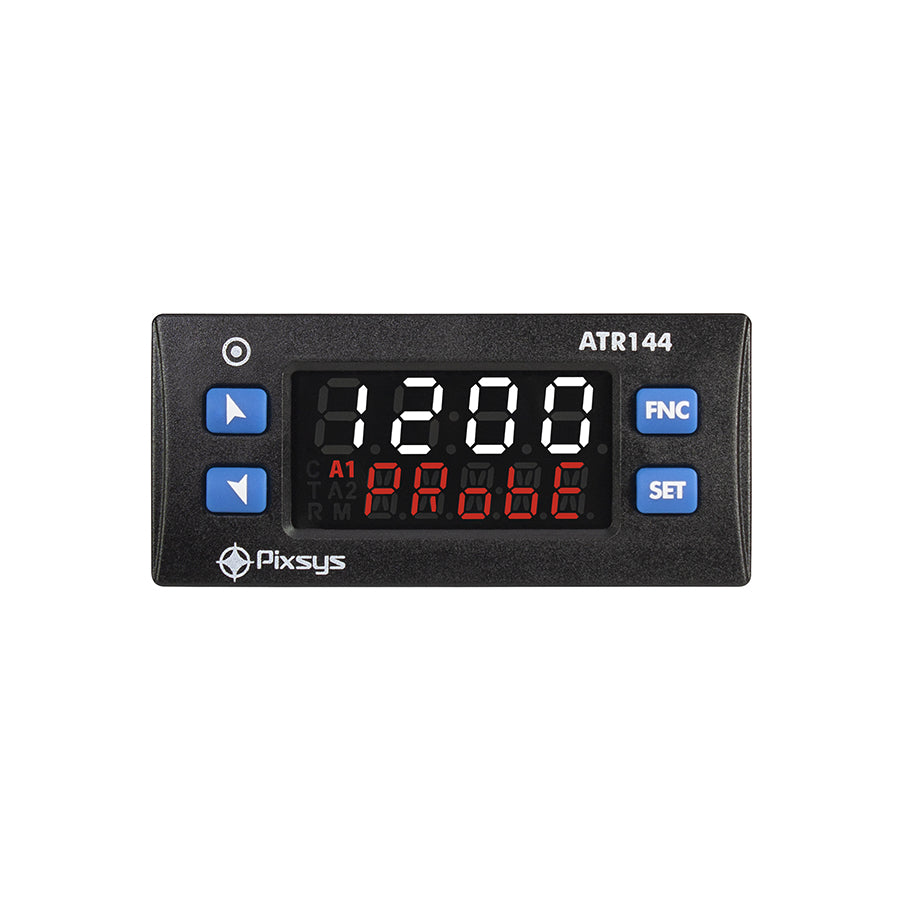

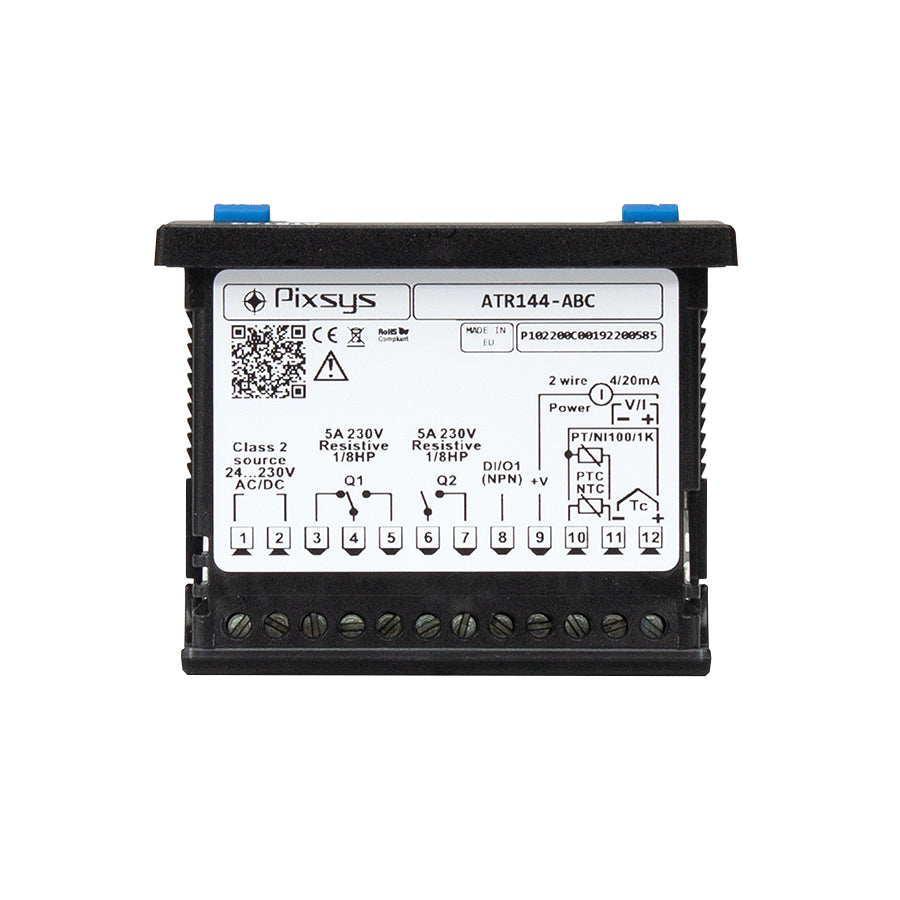

MULTI-SETPOINT CONTROLLER 32X74 4+5 Digit 1AI-1DI/O-1RL-RS485
The ATR144 is a PID controller in the compact 32x74mm format that keeps the same flexibility of the entire ATR Blue Line range.
The analogue input is programmable for a wide range of temperature probes as well as mA/Volt process signals (pressure, flow, leve, humudity...).
Digital outputs are programmable as either ON/OFF control or PID regulation; multiple alarm modes (threshold, band, upper/low deviation..) are also selectable.
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The extended range power supply 24....230V AC/DC with galvanic isolation from the mains extends its flexibility in the event of fluctuations in electricity grid and also for stock management as one single code covers different applications
The analogue input is programmable for a wide range of temperature probes as well as mA/Volt process signals (pressure, flow, leve, humudity...).
Digital outputs are programmable as either ON/OFF control or PID regulation; multiple alarm modes (threshold, band, upper/low deviation..) are also selectable.
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The extended range power supply 24....230V AC/DC with galvanic isolation from the mains extends its flexibility in the event of fluctuations in electricity grid and also for stock management as one single code covers different applications
| ORDERING CODES | ATR144-ABC | ATR144-ABC-T |
|---|---|---|
| Power supply | 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV | |
| Consumption | 5 Watt/Va | |
| Display | 4 digits 9.6 mm (0.38"), 5 digits 7.1 mm (0.28"), 6 Led signaling | |
| Analogue inputs | 1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, E, N, B (automatic compensation of cold junction -25..85°C, Toll. @25°±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, Ni120, PTC 1K, NTC 10K (β 3435K e β3694K), NTC 2252 (β3976K) , process signals 0..1/5/10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points). Impedance: 0-10 V: Ri>110 KΩ 0-20 mA: Ri<5 Ω 0-40 mV: Ri>1 MΩ |
|
| Sampling time | Programmable up to 2,1 ms (frequency up to 470 Hz) | |
| Digital inputs | 2x PNP (only with sensors different from PT100 3 wires) | |
| Digital outputs | 1x SSR 12 / 24 V DC - 25 mA max | 1x SSR 12 / 24 V DC - 25 mA max |
| Auxiliary Outputs | 12/24 VDC - 30mA max for sensor supply | |
| Relais Outputs | 2x 2 A - 250 V AC resistive load | 1x 2 A - 250 V AC resistive load |
| Serial communication | - | RS485 (1200..115200 Baud) galvanically isolated |
| USB | 1x micro USB for programming via PC with LabSoftView | |
