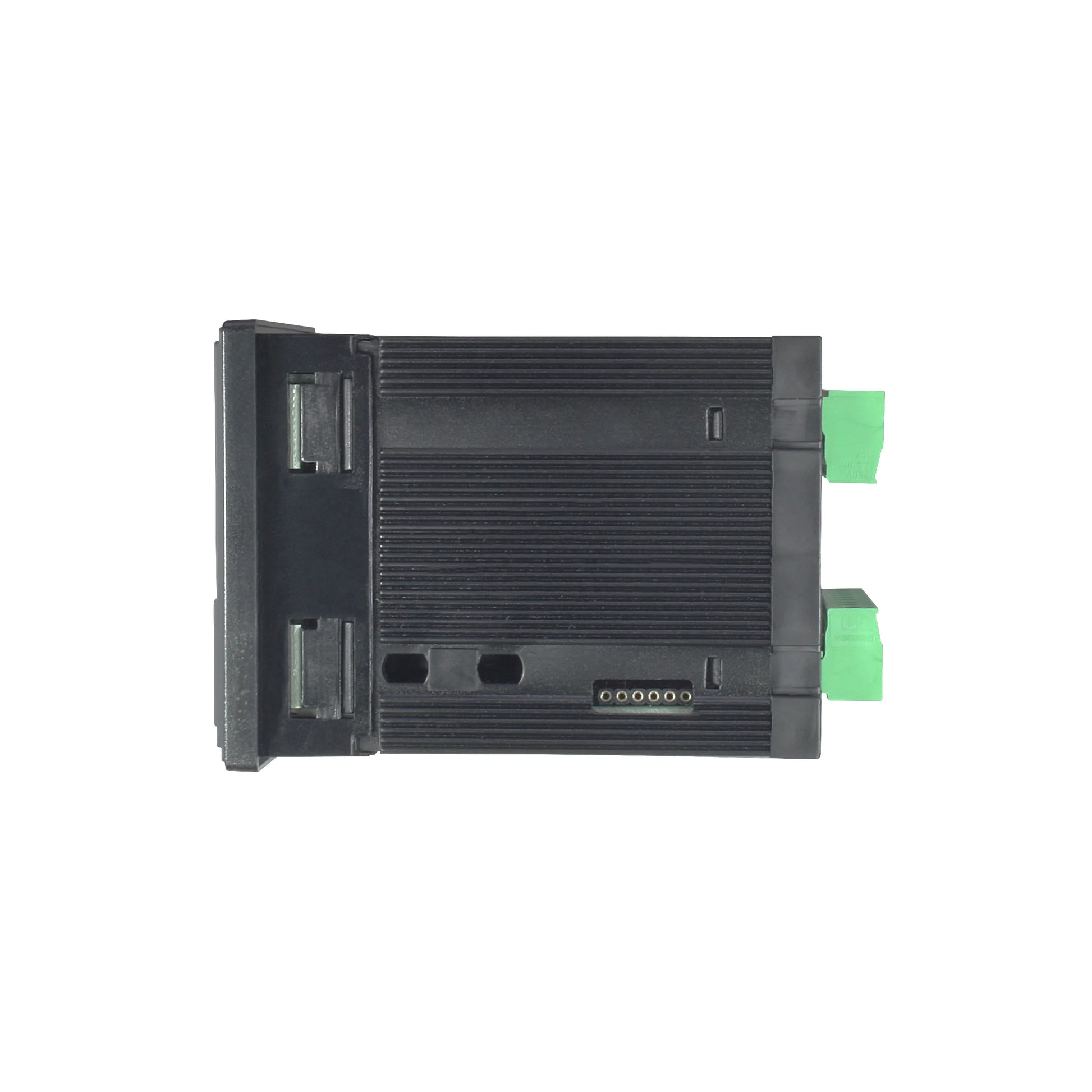

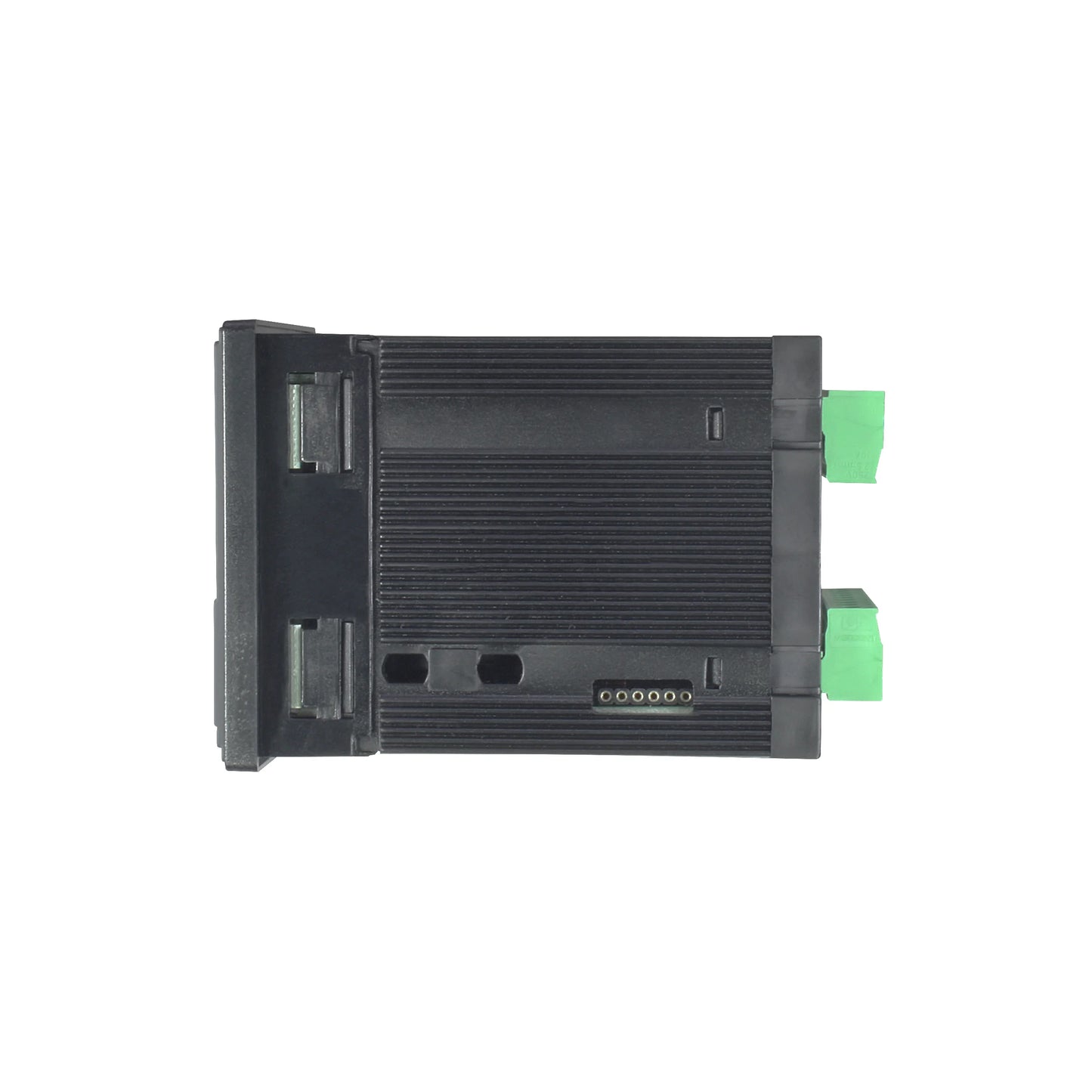

Pixsys ATR621-12ABC | Programmer
Pixsys ATR621-12ABC | Programmer
Couldn't load pickup availability
ATR621 is a PID control single loop programmer, specifically designed for the automation of industrial ovens, climatic chambers, dryers and in general for the management of thermal processes that require the programming of cycles/curves with the control of the process variable in relation to time.
ATR621 allows the programming of 15 cycles/profiles that can include up to 45 steps/segments, all freely configurable by the user as ascent/hold/descent.
The cycle programming mode is simple and intuitive even for the non-expert operator.
The instrument integrates the software functions typically required in furnace management: End-of-step waiting (in case of process delay on the programmed setpoint) and Cycle Recovery mode (after any power failures).
All options are configurable from the keyboard.
Programming is facilitated by MEMORY-CARDS that allow you to duplicate all parameters and cycles.
|

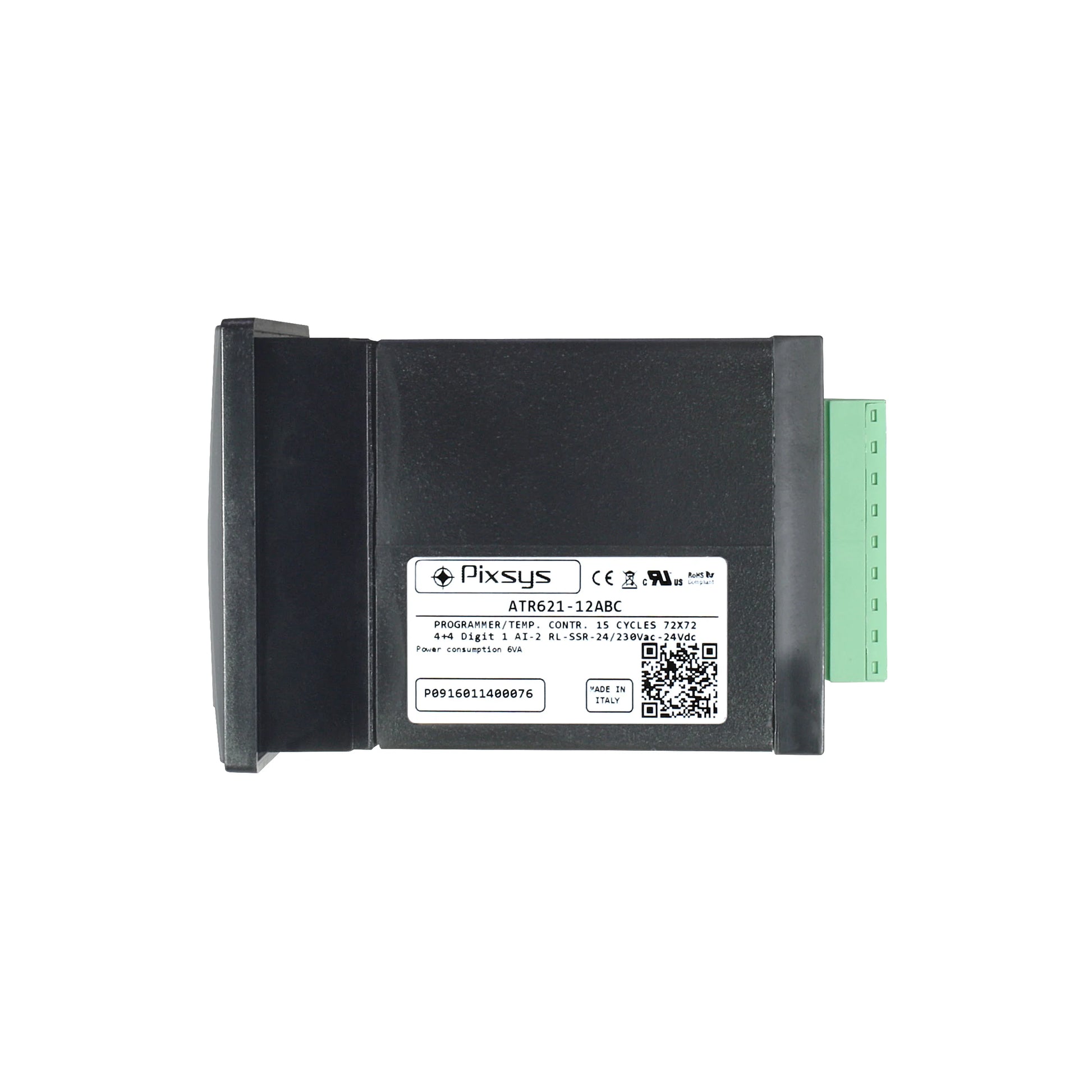

ORDERING CODES |
ATR621-12ABC |
ATR621-13ABC-T |
ATR621-14ABC |
|---|---|---|---|
|

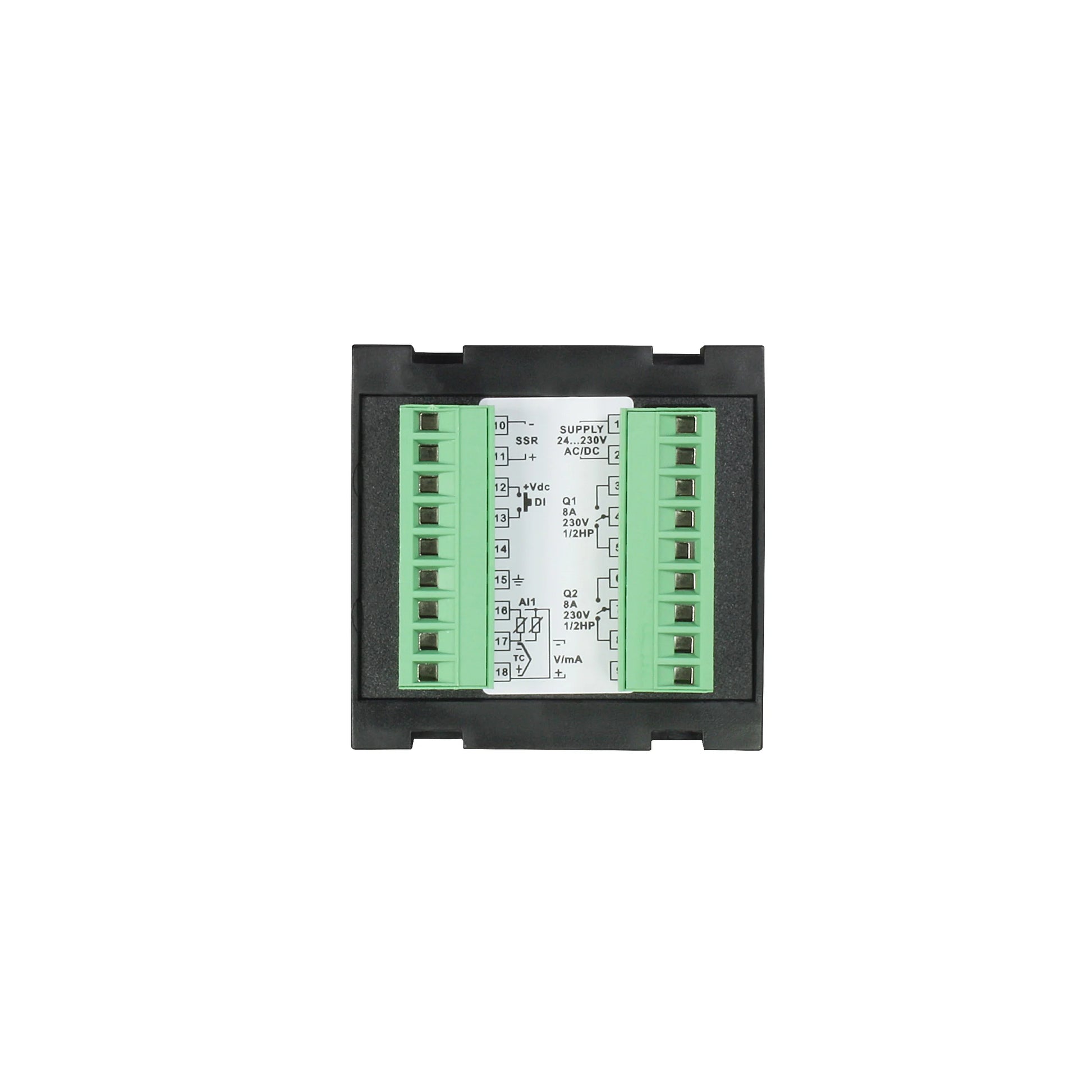

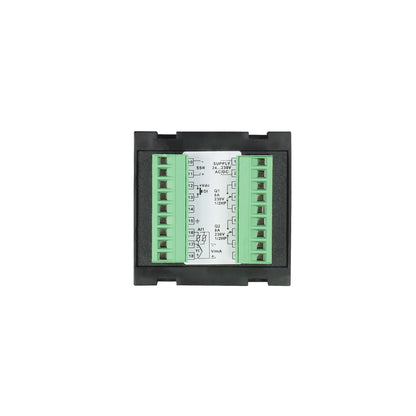

Power supply |
24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV |
||
|
Power consumption |
5,5 Watt/VA Display verde 4 cifre 0,56 , rosso 4 cifre 0,3" e 6 signaling leds |
||
|

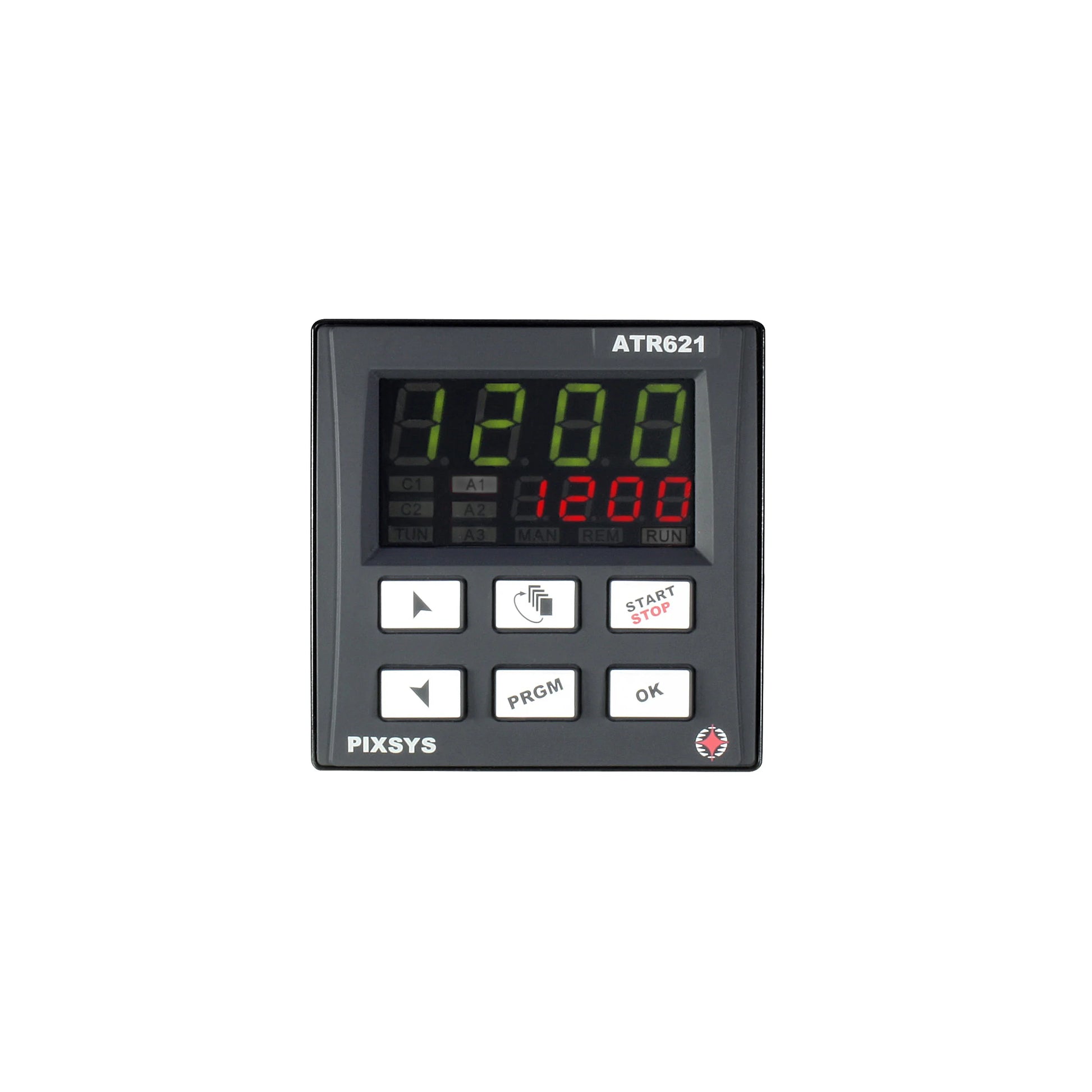

Display |
Display 4 digit 0,56" green + Display 4 digit 0,3" red + 6 signalising leds |
||
|
Analogue inputs |
1x Ris. 16bit, programmable for thermocouples K, J, S, R (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. oppure ±1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV (16000 points), Potentiometers F.S. 6/150Kohm (50000 points). |
||
|
Sampling time |
Programmable up to 4,1 ms (frequency from 4,12Hz up to 242Hz) |
||
|
Digital inputs |
1 xPNP |
- |
1 xPNP |
|
Digital outputs |
1 x PNP 12VDC - 30mA max |
1 x PNP 12VDC - 30mA max |
- |
|
Relais outputs |
2 x (8 A - 250 V AC resistive load) |
3 x (8 A - 250 V AC resistive load) |
3 x (8 A - 250 V AC resistive load) 1 x (5A - 30V AC resistive load) |
|
Analogue outputs |
- |
1 xDigitale PNP 12VDC - 30mA o 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) |
- |
|
Serial communication |
- |
RS485 (1200..115200 Baud) galvanically isolated |
- |
