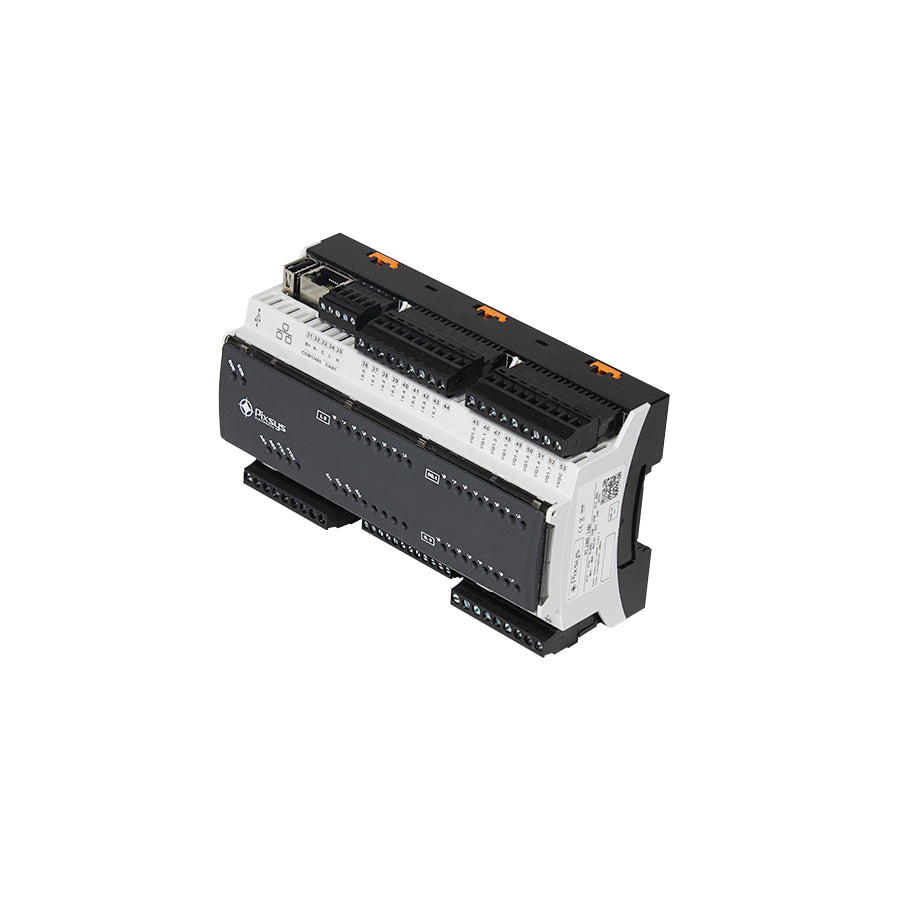

Pixsys PL280 | Compact PLC with integrated I/Os
Pixsys PL280 | Compact PLC with integrated I/Os
Regular price
Regular price
Sale price
Unit price
per
Tax included.
Couldn't load pickup availability
The Pixsys PL280 PLC range features a compact design. The PL280 CPU, programmable with the LogicLab environment, is configured as a control unit and connectivity node, complete with RS485 serial (Modbus RTU), Ethernet (Modbus TCP) and CANopen, and is based on an ARM CORTEX H7 480MHz microprocessor.
The PL280 can be expanded with PLE500 modules, which communicate with the CPU via an internal real-time bus on a DIN rail. For remote I/O acquisition and management, the MCM260X series is also available.
For Industry 4.0 connectivity, the Modbus TCP protocol is supported and available as a feature in the LogicLab development tool.
Product Features
| Power supply | 12..24 V DC ±15% 50/60 Hz |
| Power consumption | 5 Watt/VA |
| Processor | ARM Cortex H7 @ 480MHz |
| Memory | Flash 2 Mb / RAM 1 Mb |
| Serial communication | 1x RS485 (1200..115200 Baud) |
| CAN | 1x CAN (50K..1Mbit) |
| Expansion Bus | PLE-DIN-BUS (real time) on DIN BAR |
| Field Bus | Modbus RTU Master/Slave, CANopen (Master) |
| Ethernet | 1x 10 / 100 Mbit/s Base-T on RJ45 connector (Modbus TCP master/slave) |
| USB | 1x USB 2.0 for PLC logic files update |
| Digital inputs | 8 PNP + 8 optional |
| Digitali outputs | 8 PNP + 8 optional |
| Encoder input | 4x (Res. 32 bit, 80 KHz) Push Pull |
| Analogue inputs | 4x TC type K S R J, PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), potenziometro 6 KΩ, 150 KΩ (50000 pts) 0..60 mV (16000 pts)<br />4x 0..10 V (54000 pts), 0/4..20mA (40000 pts) |
| Analogue outputs | 2 x 0..10V / 4..20 mA |
| Pulse Train - PTO outputs | 2 x 100 KHz |
