Pixsys

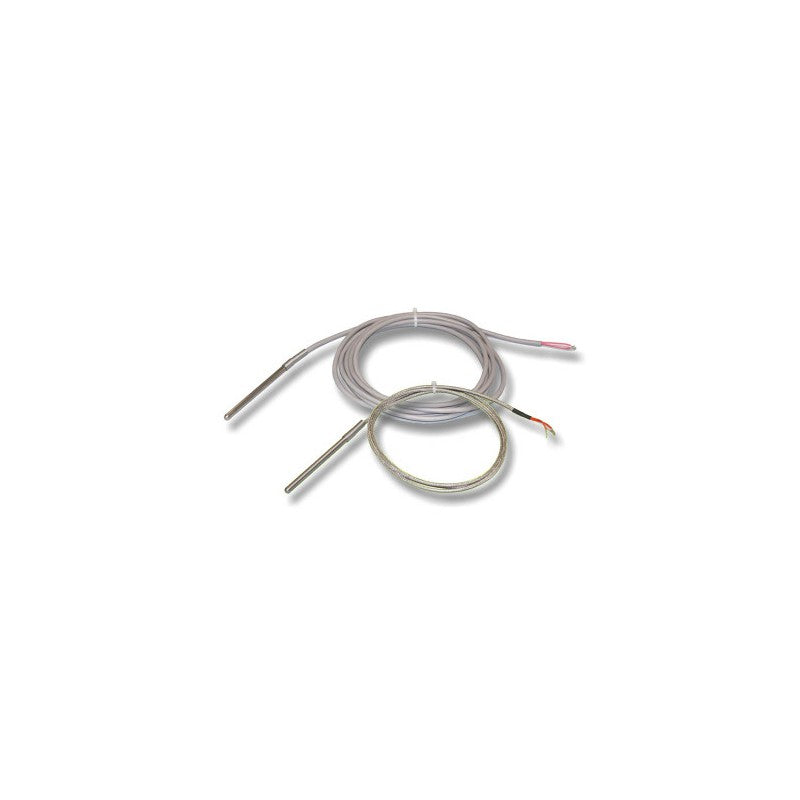

Pixsys PT100 with cable and anti-kink spring
Pixsys PT100 with cable and anti-kink spring
Regular price
Regular price
Sale price
Unit price
per
Tax included.
Couldn't load pickup availability
The PT100 sensor uses a platinum resistive element for accurate temperature measurement.
The probe is available in different sizes and formats; the cable has an anti-kink spring and is supplied in different lengths and materials to meet the needs of adapting to different environmental conditions of use.
P/N: 2000.90.039
Product Features
- Sheath diameter: 6 mm
- Immersion material: Acciaio AISI 304
- Internal insulation: MgO Magnesium oxide > 20MOhm @25°C
- Sensor: PT100 B class (+/- 0,3°C a 25°C)
- Response time: 6,5 seconds (BS 1904/1984/CEI60751)
- Sealing: IP66
- Measuring range: -100 ... +250°C
- Cable: GSC Silicone, TTS
- Cable length: 1.5-3m
