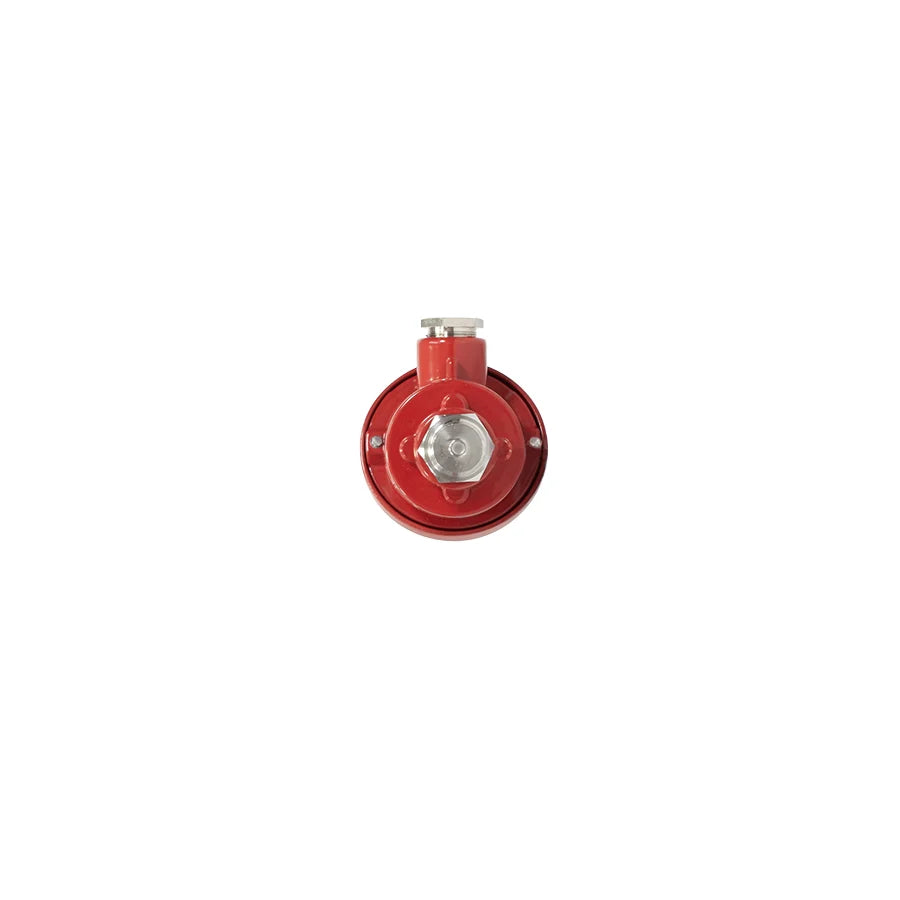

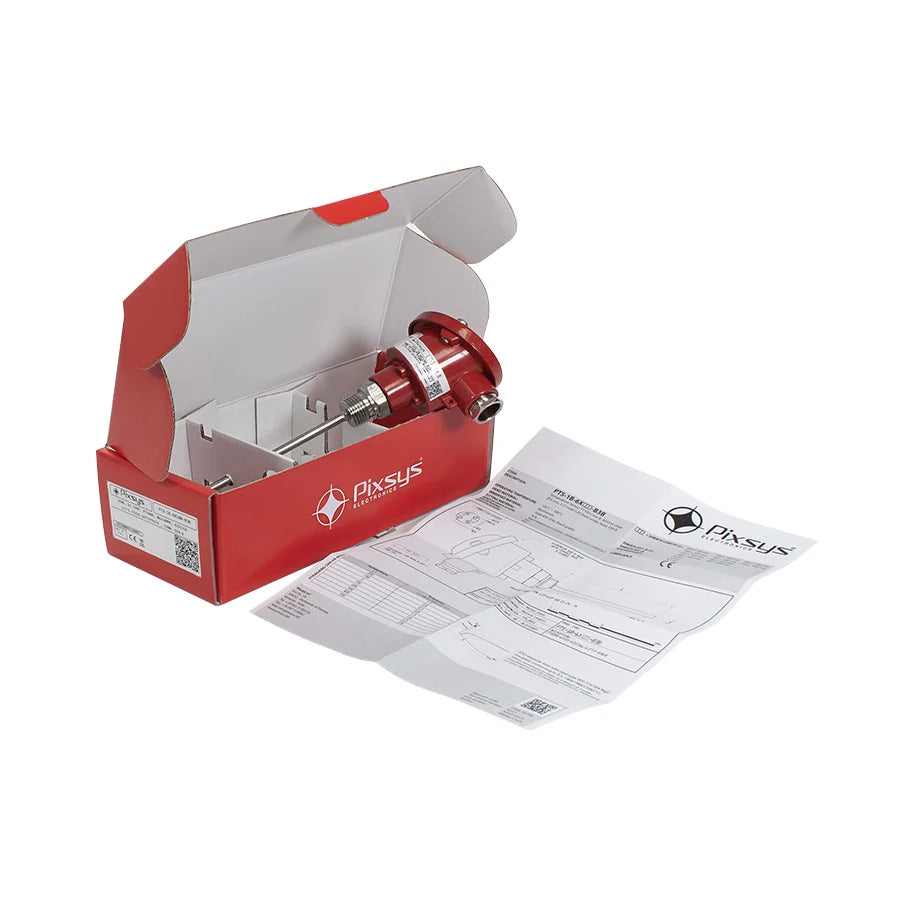

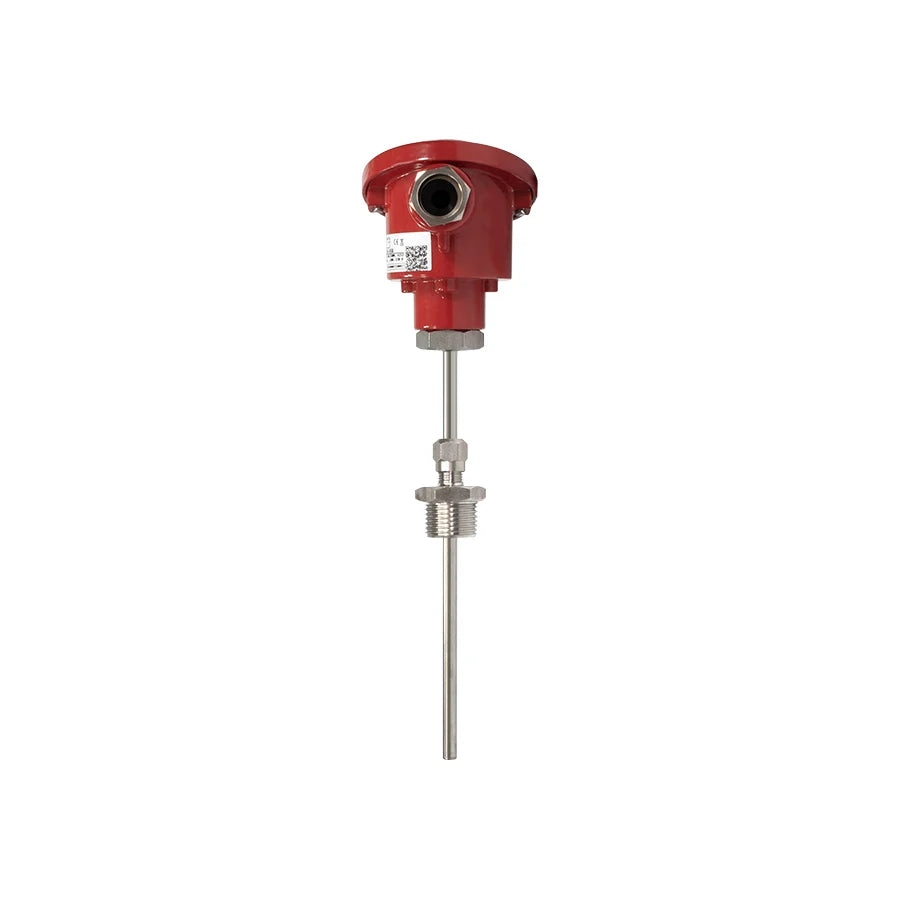

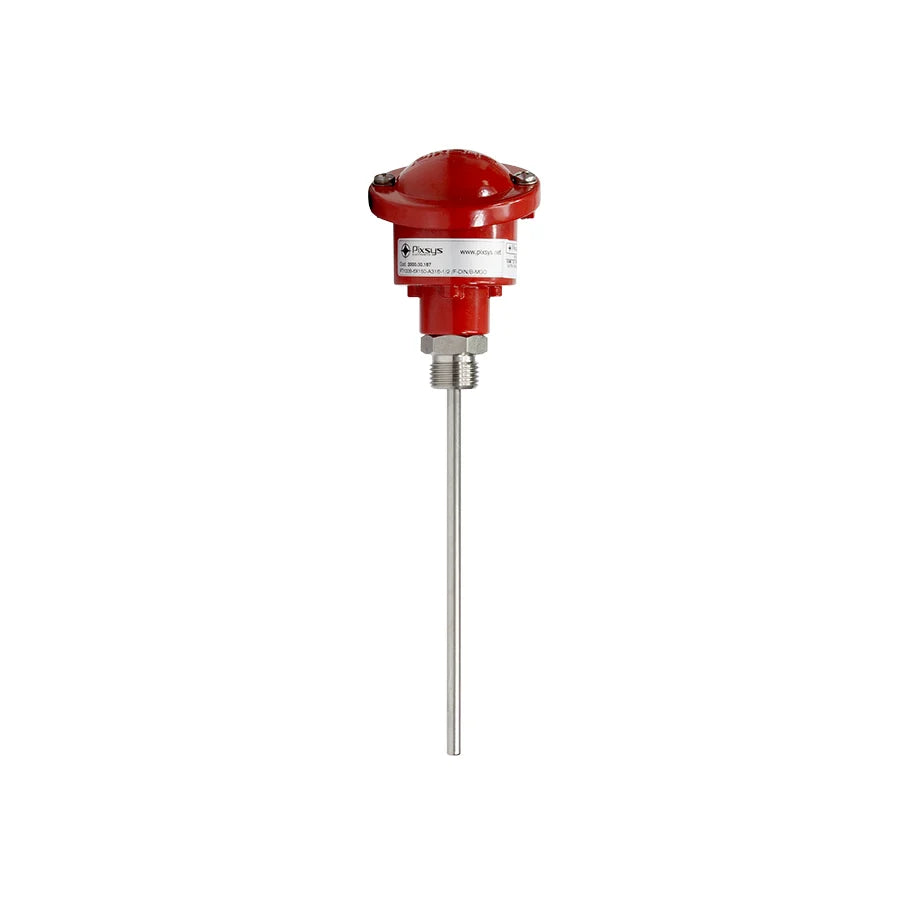

Pixsys PT100 | PTS Thermoresistance with Din/B Head 100mm
Pixsys PT100 | PTS Thermoresistance with Din/B Head 100mm
Regular price
Regular price
Sale price
Unit price
per
Tax included.
Couldn't load pickup availability
S/N 2000.00.129
PT100 probe with DIN B head is a resistance thermometer with a nominal resistance of 100 ohms at 0°C, with an accuracy of ±0.15°C (coefficient of variation is 0.00385 ohm per °C). The DIN B head is standardised for easy installation on industrial equipment. This type of probe is commonly used for temperature measurement in industrial applications such as food and beverage production, building automation, the chemical and pharmaceutical industry, and many others.
- Sensor: PT100 class B (+/- 0,3°C a 25°C)
- Response time: 6,5 seconds (BS 1904/1984/CEI60751)
- Sheath diameter: 6 mm
- Immersion material: Steel AISI 316L
- Measuring range: -100 ... +500°C
- Internal insulation: MgO Magnesium oxide > 20Mohm @ 25°C (500Vdc)
- Din B head material: Aluminium (UNI 1706) EN AC 46100
- Degree of protection: IP66 for head with conduit hole
- Gasket to cable gland: Neoprene
- Anticorrosion treatment: Without hexavalent chromium (primer) , Epoxy-polyester or polyester paint (min. 80 micron)
- Max. space for a transmitter: Ø45x30mm
- Cable gland: Nickel -plated brass
- PT100 probe with DIN B head is a resistance thermometer with a nominal resistance of 100 ohms at 0°C, with an accuracy of ±0.15°C (coefficient of variation is 0.00385 ohm per °C).
