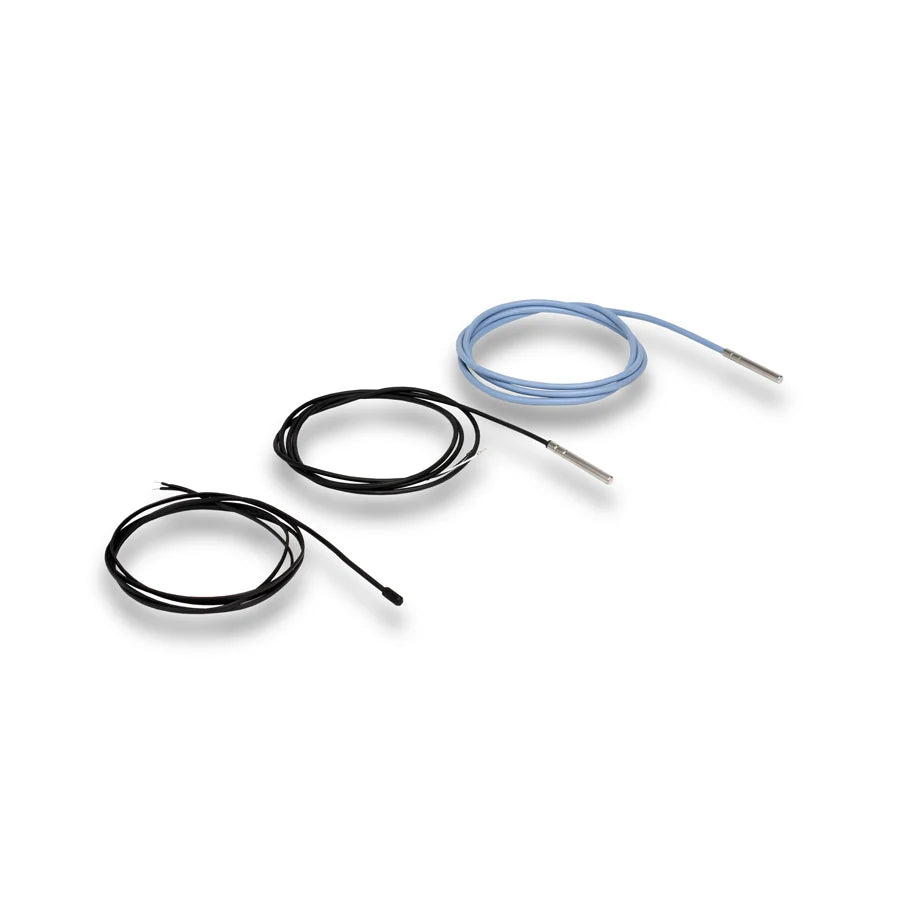

Pixsys Temperature Sensor NTC 10K 1.5m Cable

NTC thermo-resistances are commonly used for temperature measurements in refrigeration and HVAC applications. Capsule is available in steel or resin-coated polypropylene.

P/N 2000.00.316

• Stem diameter: 6 mm
• Immersion material: Steel AISI 304 / Thermoplastic rubber (GOT)
• Internal isolation: MgO Magnesium Oxide > 20Mohm @ 25°C (500Vdc)
• Sensor: NTC10K beta 3435 +/-1%
• Response time: 10" V=2m/sec (liquid) K (costant)= 10sec. water flow speed =2m/s
• GSC cable: Silicon rubber, operating temperature -40 ... 250°C
• GOT cable: Thermoplastic rubber -30 ... +105°C
• Cable sealing: Anti-bending spring 40 mm between cable and stem
• Sealing: IP55 / IP67 with resin
• Measuring range; -50°C ...+120°C
• Certification: CE
