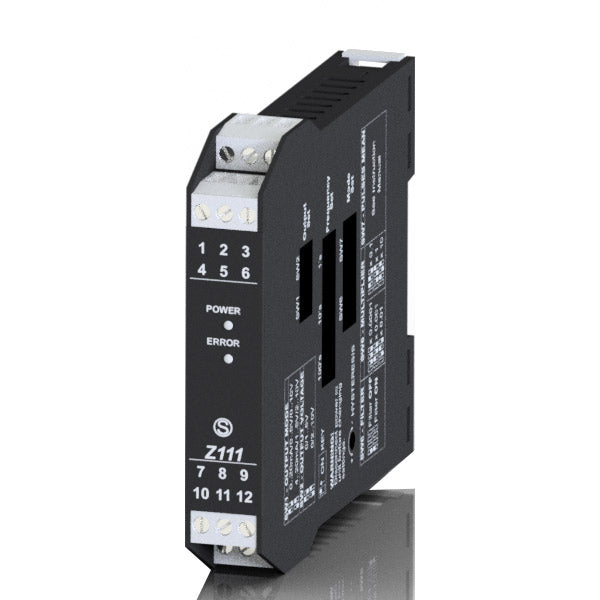

Frequency - DC Isolator/Converter
Z111 allows a conversion of a frequency signal and provides a mA/V standard output signal. The input is programmable in a range from 1 mHz to 9,99 KHz. It’s completely configurable through dip switches. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your data.
TECHNICAL DATA
| ORDER CODE : | Z111 |
| DESCRIPTION: | Frequency to DC isolator/converter |
| PULSE INPUT: | contact, npn 2 / 3 wires, pnp 3 wires 24 Vdc supply, Namur, photoelectric, Hall sensor, variable reluctance, 24 V pulse, TTL, oval wheel counter flow meters |
| FREQUENCY: | From 1 mHz (0,001 Hz) to 9.99 KHz |
| SETTABLE FULL SCALE: | From 10 mHz (0,01 Hz) to 9.99 KHz |
| OUTPUT: | Current 0..20, 4..20 mA; voltage 0..5/10, 1..5, 2..10 V |
| POWER SUPPLY: | 10..40 Vcc, 19..28 Vca 50..60 Hz, max 2,5 W |
| INSULATION: | 1.500 Vac |
| CONFORMITY: | CE, UL-UR CSA |
SHIPPING AND EXPORT INFORMATION
| PRODUCT CODE | Z111 |
| GROSS WEIGHT kg | 0.16 |
| ORIGIN | IT |
| CN (COMBINED NOMENCLATURE) | 85437090 |
| ECCN | EAR99 |
