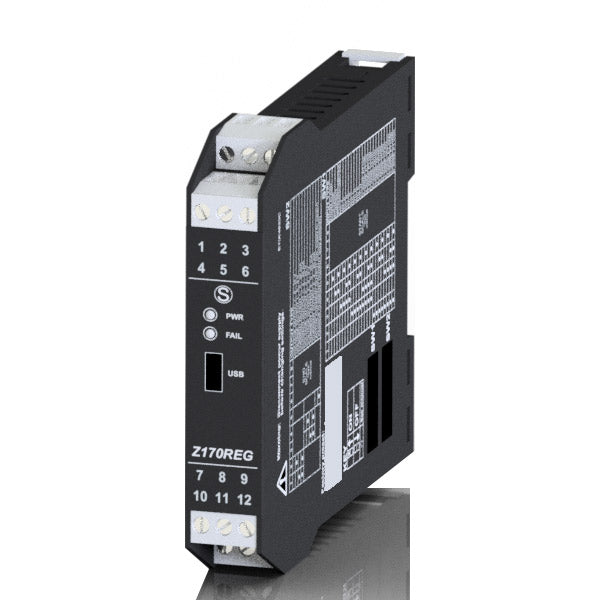

Seneca Z170REG-1 DC Duplicator/Isolator

Name: Seneca Z170REG-1 DC Duplicator/Isolator
Brand: Seneca
Price: 427.9 AUD
Availability: InStock

$427.90

Sale Sold out

Tax included.

Product variants

Quantity

DC DUPLICATOR / ISOLATOR
WITH UNIVERSAL INPUT AND 2 X OUTPUT

P/N Z170REG-1

Datasheet

The Z170REG-1 module acquires a universal input signal and converts it
into an analog format, returning two independent and isolated universal
outputs.
Isolation voltage between power supply / input / output features 1.500
Vac.
The signal converter offers the possibility to choose between different
types of input: voltage, current, potentiometer, thermocouple (TC) by
thermoresistance (RTD).
The two analog outputs have 14-bit resolution.
Selecting the current input it’s possible to power an external sensor.
The module has a Micro USB connector on the front panel and can be
configured by software or specific App for Android devices.

TECHNICAL DATA

POWER SUPPLY	10..40 Vdc; 19..28 Vac
TRANSDUCERS POWER SUPPLY	Yes, Max 25 mA, 17 Vdc
POWER CONSUMPTION	0,5..2 W
INSULATION	1.500 Vac
STATUS LED	Power supply Alarm
ACCURACY CLASS	0,1%
INTERFACE	Micro USB (front panel)
INPUT CHANNEL	1 settable input: VOLTAGE: 0..10 V settable scale CURRENT: 0..20 mA (active/passive module) settable scale Potentiometer: 1 kΩ ..100 kΩ settable scale TC: J,K,R,S,T,B,E,N RTD: Pt100, Pt500, Pt1000, Ni100 Resolution 14 bit Sampling period settable from 5 up to 20 ms
OUTPUT CHANNELS	2 settable outputs: VOLTAGE: 0..10 V settable scale CURRENT: 0..20 mA (active/passive) settable scale Resolution 14 bit
RESPONSE TIME	< 25 ms
THERMAL DRIFT	0,01% /K
LINEARITY	<1% (input), 0.01% (output)
PROGRAMMING	DIP-switch Software (EASY SETUP) Android app ( EASY SETUP app)
OPERATING TEMPERATURE	-10..+65°C
DIMENSION (WXHXD)	17,5 x 100 x 112 mm
CONNECTIONS	Removable screw terminals
HOUSING	Nylon 6 30% glass fiber
MOUNTING	DIN rail guide 35 mm (IEC/EN 60715)
PROTECTION DEGREE	IP20
WEIGHT	200 g
STANDARD	CE
NORMS	EN 61000-6-4, EN 61000-6-2, EN 61010-1
