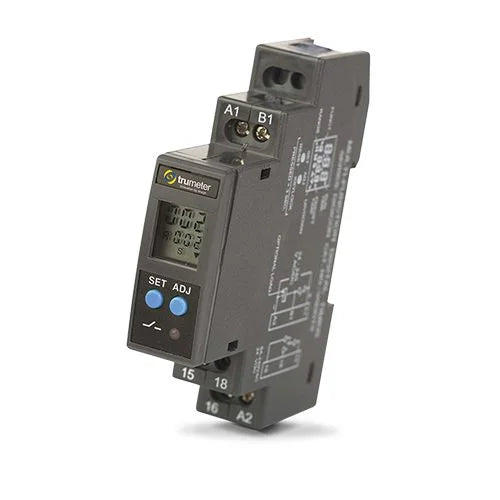

Truemeter Multi-Function Digital Timer, 18 Functions, 1 C/O, 24 – 240VAC/DC

Truemeter 7957

Features

• Compact 17.5mm wide DIN rail mountable

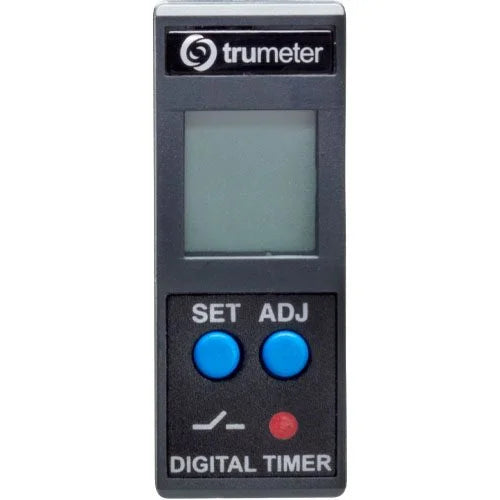

• 3 digit LCD for easy programming and run time indication
• Tamper proof with key lock feature
• Wide timing range: 0.1s - 999Hr
• Multi-function: 8 (7954) or 18 (7957) selectable operating modes
• Universal Voltage: 24 - 240VAC/VDC
• Option to select up/down timing
• CE, UL & cUL
• 8 AMP Form C (SPDT) Relay outputs

Operating Modes

• ON Delay
• Repeat Cycle OFF/ON
• Repeat Cycle ON/OFF
• Impulse on Power Up
• Accumulative Delay on Signal
• Accumulative Delay on Inverted Signal
• Accumulative Impulse on Signal
• Signal ON Delay
•Inverted Signal ON Delay
• Signal OFF Delay
• Impulse ON/OFF
• Signal OFF/ON
• Leading Edge Impulse 1
• Leading Edge Impulse 2
• Trailing Edge Impulse 1
• Trailing Edge Impulse 2
• Delayed Impulse
• Inverted Signal ON Delay (Type 2)
